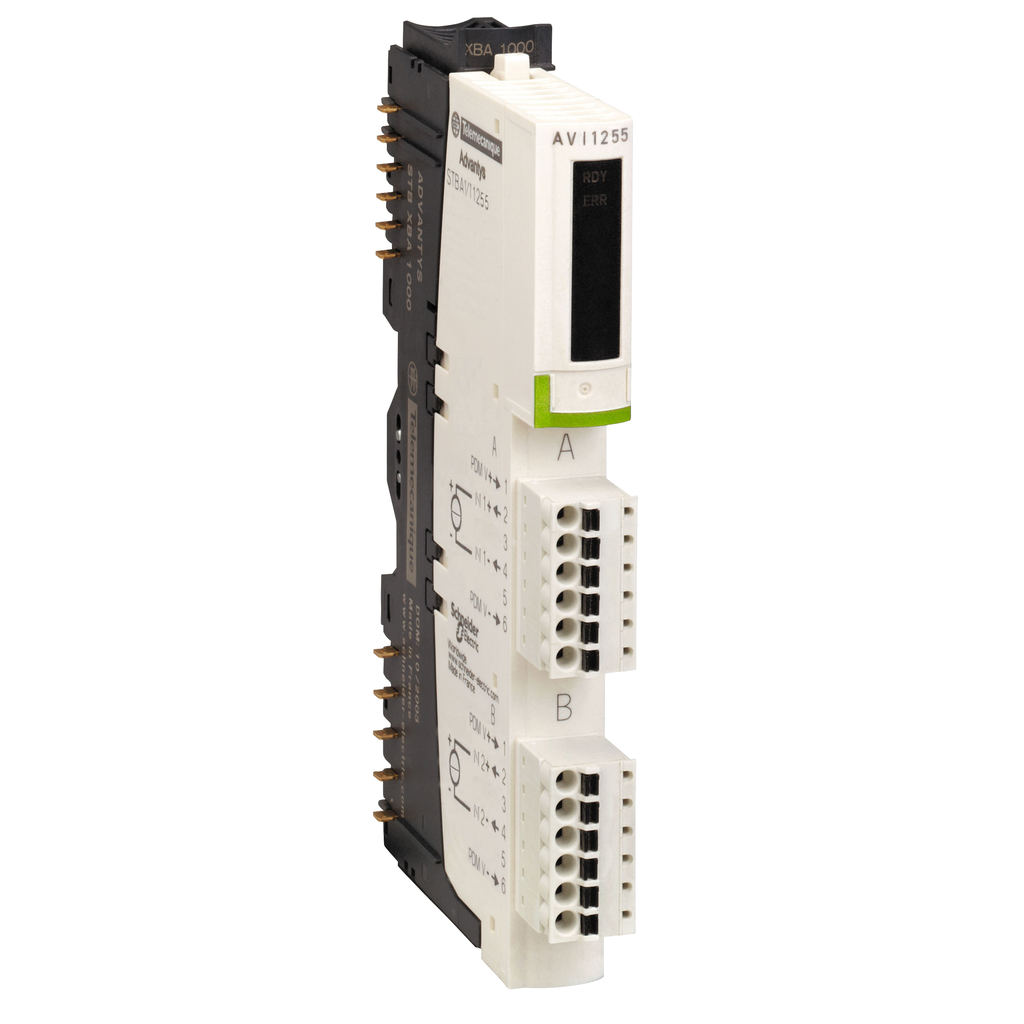

standard analog input kit STB - +/- 10 V - 8 I - 15 bits + sign

• Range Of Product: Modicon STB distributed I/O solution
• Type Of Filter: single low pass input filter 25 Hz
• Product Or Component Type: standard analog input kit
• Analogue Input Number: 8
• Analogue Input Resolution: 15 bits + sign
• Kit Composition: STBXBA1000 base || STBAVI1400 module || STBXTS2100, 6-terminal spring clamp connector || STBXTS1100, 6-terminal screw type connector
• Analogue Input Type: voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V

Contractual warranty

• Warranty: 18 months

Complementary

• Insulation Between Channels And Logic Bus: 1500 V for 1 minute
• Cold Swapping: yes
• Maximum Supply Current For Sensors: 100 mA per input channels
• Input Impedance: 400 kOhm
• Insulation Between Channels And Sensor Bus: 30 V
• Status Led: 1 LED (Green) module status (RDY) || 1 LED (Red) module error (ERR)
• Hot Swapping Fallback: yes for standard NIMs
• Differential Linearity: monotonic
• Integral Linearity: +/- 0.2 %FS
• Supply: power distribution module
• Data Format: IEC 61131-2 || EN 61131-2
• Current Consumption: 90 mA 5 V DC logic bus
• Marking: CE
• Fallback Status: state 0 basic NIMs || user configurable standard NIMs
• Temperature Drift: +/-0.01 %/°C
• Addressing Requirement: 2 input words
• Absolute Accuracy Error: +/- 0.75 % of full scale 25 °C
• Absolute Maximum Input: 50 V DC
• Maximum Source Impedance: 1 kOhm
• Update Time: 22 ms
• Overvoltage Category: II
• Product Compatibility: power distribution module STBPDT3100/3105 || mounting base STBXBA1000
• [Us] Rated Supply Voltage: 24 V DC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1511012EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1511012EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: ATEX Cat 3G || CSA || FM Class 1 Division 2 || C-tick || UL
• Ambient Air Temperature For Storage: -40...185 °F without derating
• Ambient Air Temperature For Operation: -25-70 °C
• Shock Resistance: 30 gn 11 ms IEC 88 reference 2-27
• Vibration Resistance: +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
• Ip Degree Of Protection: IP20 conforming to EN 61131-2 class 1
• Pollution Degree: 2 IEC 60664-1
• Ambient Air Temperature For Storage: -40-85 °C without derating
• Relative Humidity: 95-95 % 60-60 °C without condensation
• Operating Altitude: <= 6561.68 ft (2000 m)
• Ambient Air Temperature For Operation: 13...158 °F without derating
