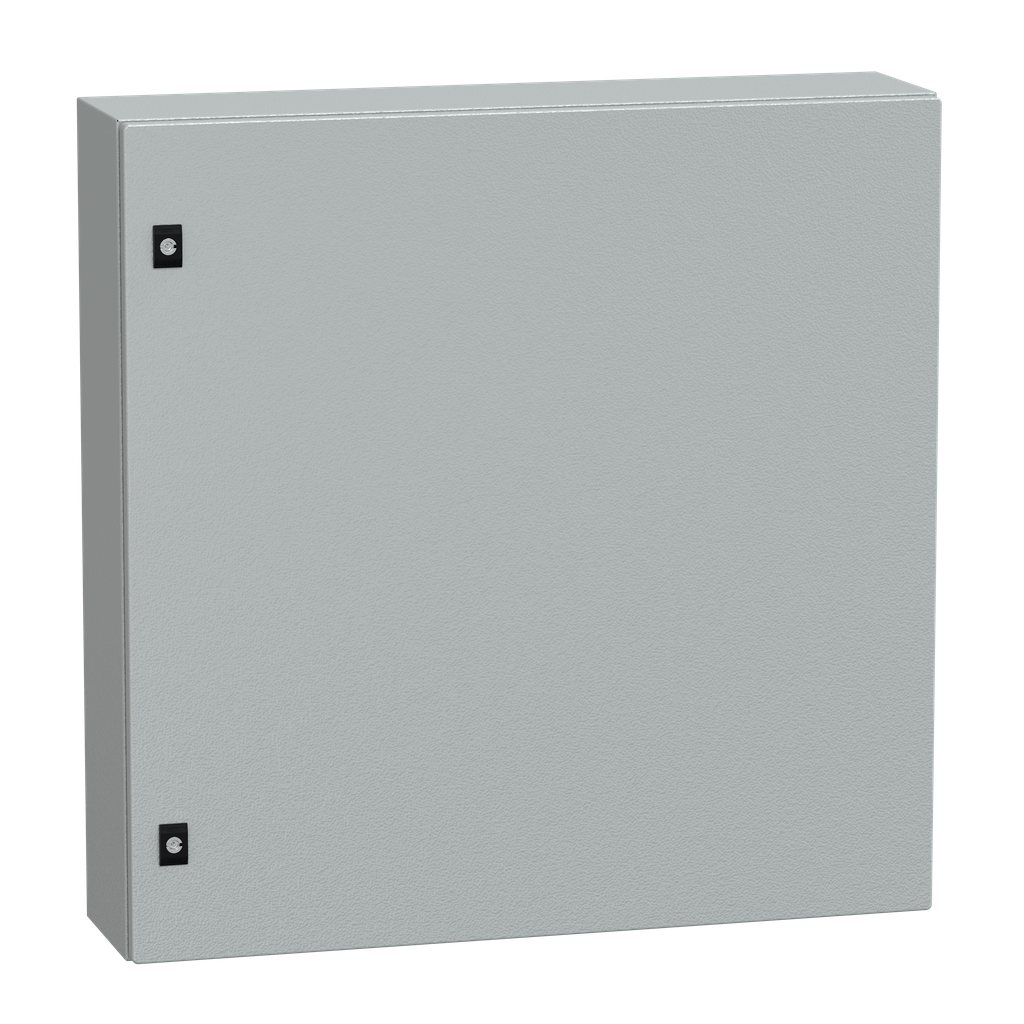

Spacial CRN plain door with mount.plate. H800xW800xD200 IP66 IK10 RAL7035..

• Installation Accessory Type: wall-mounting
• Product Or Component Type: compact enclosure
• Product Name: Spacial CRN
• Device Composition: 1 body || 1 door with lock || 1 mounting plate || 2 cable gland plate bottom
• Enclosure Nominal Height: 800 mm
• Door Type: Solid
• Enclosure Nominal Depth: 200 mm
• Device Application: multi-purpose
• Enclosure Nominal Width: 800 mm
• Mounting Plate Description: plain
• Range: Spacial

Contractual warranty

• Warranty: 18 months

Complementary

• Product Certifications: UL || cUL || DNV-GL
• Accessibility For Operation: front
• Removable Parts: door by hinges || cable gland plate by screws || mounting plate by fixing element
• Type Of Gland Plate: standard
• Standards: IEC 62208
• Material: enclosure steel || mounting plate galvanised steel
• Variant Particularity: sides made from a single folded section || back welded with double profile forming a protected sealed area
• Surface Finish: enclosure epoxy-polyester powder
• Color: enclosure Gray RAL 7035)
• Lock Type: 3 mm double-bar lock
• Net Weight: 33 kg
• Door Opening Side: reversible 120 °)
• Number Of Doors: front face 1

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP100104EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Environment

• Ik Degree Of Protection: IK10 IEC 62262
• Ip Degree Of Protection: IP66 IEC 60529
