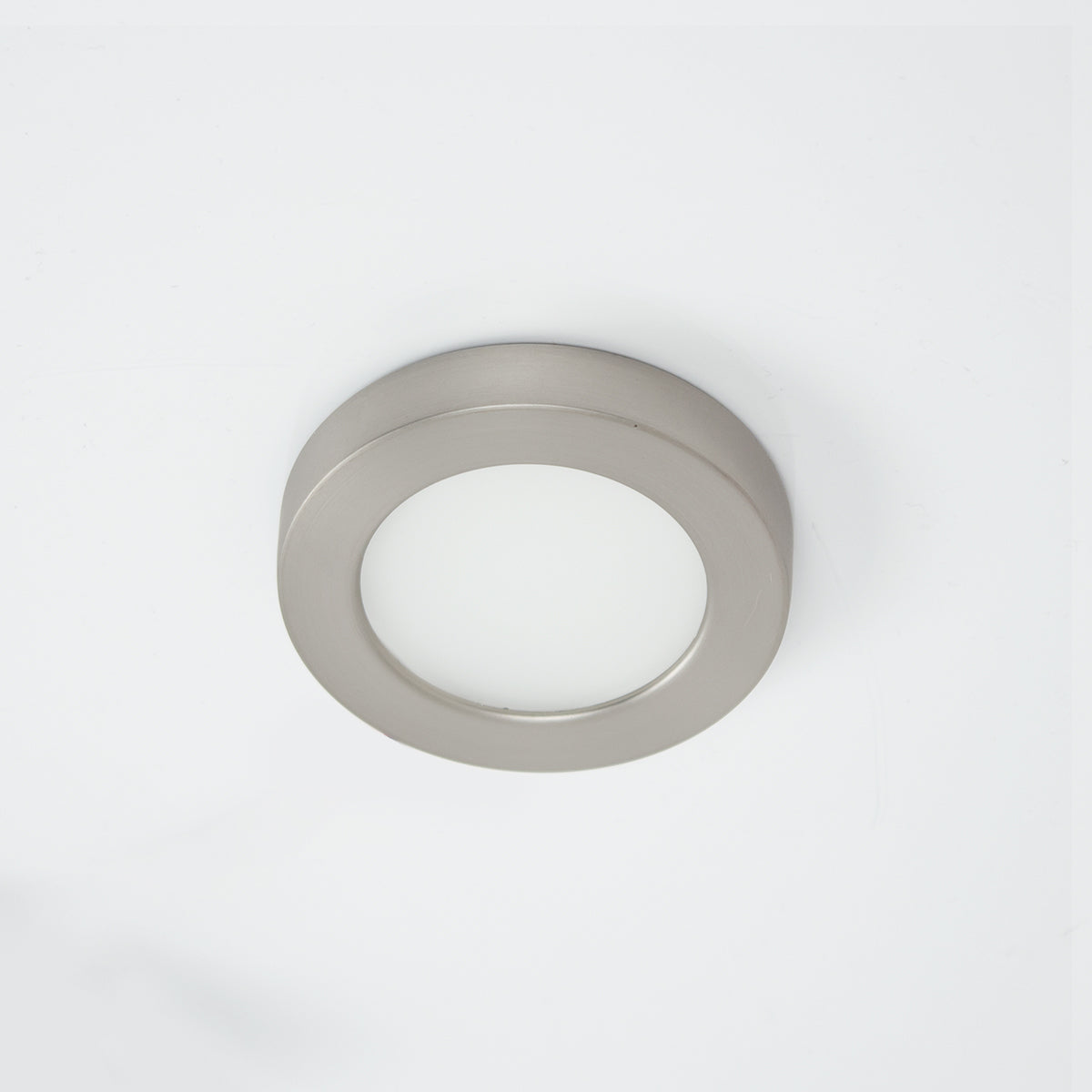

LED Button Light 24 LED 3 inch Brushed Nickel Puck Light in 3000K

Designed for recessed or surface mounted installations, delivering strong light output with the latest in LED technology.

Construction: Die-cast aluminum fixture stamped steel housing for surface mount. Beam spread lens.
Power: Class 2, 24V remote and plug-in transformers allow for up to 10 button lights to be
wired together. Use a multiple terminal block to wire up to 6 xtures in a neat under cabinet installation without the use of open splices (see below).
Light Source: 3000K mid-power LEDs. CRI 90
Dimming: May be dimmed down to 5% with an electronic low voltage (ELV) dimmer. Compatible with LUTRON DVELV-300 and SELV-300 (ELV) dimmer.
Mounting: Recessed– 3 1/4" cutout hole. Compression springs hold
fixture firmly in place. Surface– Screw mounting plate to surface, snap thefixture onto the
mounting plate. Not recommended for use in ceiling.
Finish:  Brushed Nickel (BN) Anti-microbial paint.
Standards: ETL and cETL Listed

• Delivered Lumens: 200lm
• CCT: 3000K
• CRI: 90
• Power: 5W
• Input: 24 VAC, 50/60Hz
• ELV Dimming: 100-5%
• Rated Life: 100,000 Hours
• Construction: Die-cast aluminum fixture, stamped steel housing for surface mount
• Recessed or surface mounting
• Super thin profile at 2"
• Edge-lit LEDs reduce glare and assure even light distribution
• Anti-microbial white paint
• Transformer required
