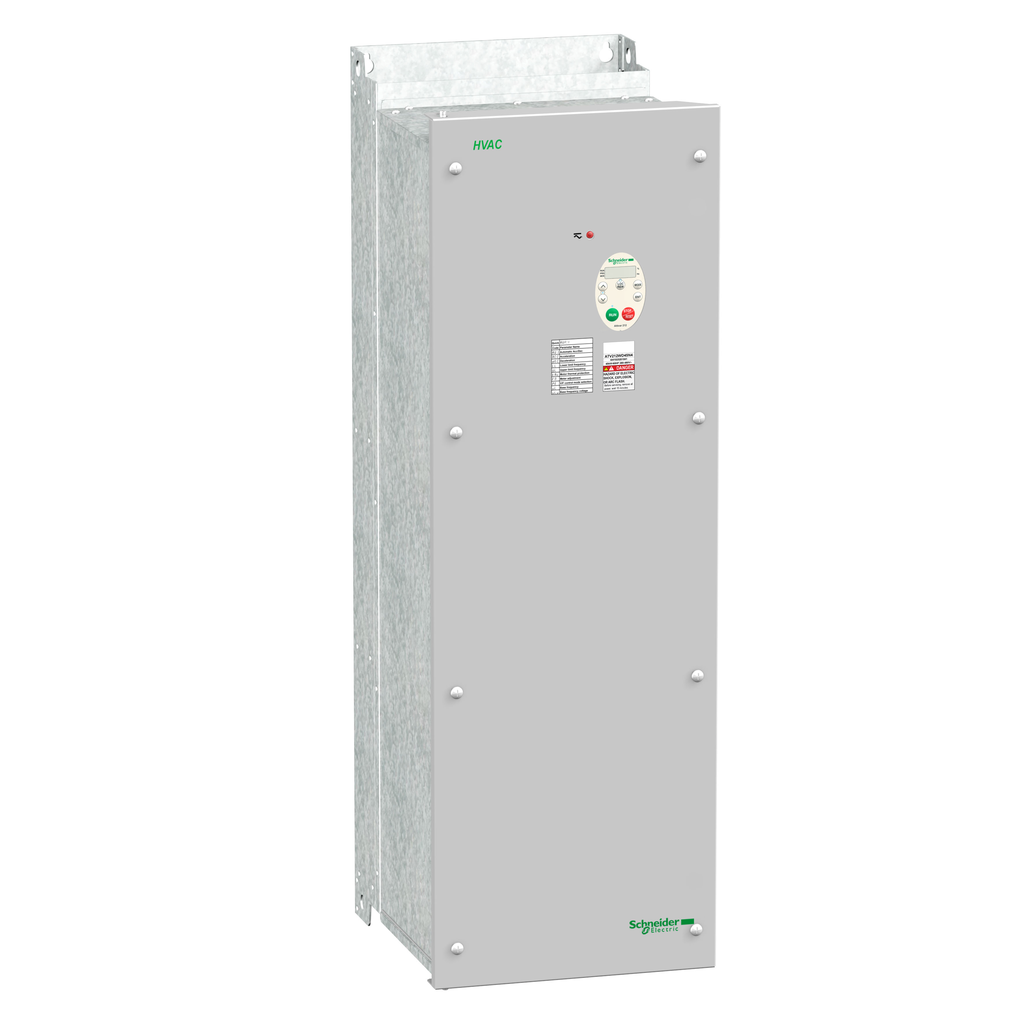

variable speed drive ATV212 - 37kW - 50hp - 480V - 3ph - EMC class C1 - IP55

• Product Destination: asynchronous motors
• Range Of Product: Altivar 212
• Product Or Component Type: variable speed drive
• Ip Degree Of Protection: IP55
• Motor Power Kw: 37 kW
• Phase: 3 phase
• Line Current: 68.9 A 380 V || 54.4 A 480 V
• [Us] Rated Supply Voltage: 380...480 V - 15...10 %
• Communication Port Protocol: METASYS N2 || LonWorks || Modbus || APOGEE FLN || BACnet
• Supply Voltage Limits: 323-528 V
• Product Specific Application: pumps and fans in HVAC
• Emc Filter: Class C1 EMC filter integrated
• Maximum Horse Power Rating: 50 hp
• Device Short Name: ATV212
• Supply Frequency: 50...60 Hz - 5...5 %

Contractual warranty

• Warranty: 18 months

Complementary

• Prospective Line Isc: 22 kA
• Electrical Connection: VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0 || U/T1, V/T2, W/T3 terminal 50-50 mm² / AWG 1/0
• Network Frequency: 47.5...63 Hz
• Discrete Input Logic: positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
• Type Of Cable: without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
• Height: 880 mm
• Acceleration And Deceleration Ramps: automatic based on the load || linear adjustable separately from 0.01 to 3200 s
• Analogue Output Type: FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
• Speed Drive Output Frequency: 0.5-200 Hz
• Discrete Output Type: configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
• Transmission Frame: RTU
• Torque Accuracy: +/- 15 %
• Asynchronous Motor Control Profile: flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 5 points || voltage/frequency ratio, 2 points
• Maximum Switching Current: 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
• Communication Service: read holding registers (03) 2 words maximum || read device identification (43) || write multiple registers (16) 2 words maximum || write single register (06) || time out setting from 0.1 to 100 s || monitoring inhibitable
• Transient Overtorque: 120-120 % of nominal motor torque +/- 10 % 60 s
• Insulation Resistance: >= 1 mOhm 500 V DC for 1 minute
• Response Time: FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
• Data Format: 8 bits, 1 stop, odd even or no configurable parity
• Apparent Power: 52 kVA 380 V
• Dielectric Strength: 3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
• Type Of Polarization: no impedance
• Frequency Resolution: display unit 0.1 Hz || analog input 0.024/50 Hz
• Accuracy: +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
• Switching Frequency: 6...16 kHz adjustable || 8...16 kHz with derating factor
• Maximum Transient Current: 86.9 A 60 s
• Connector Type: 1 open style || 1 RJ45
• Analogue Input Number: 2
• Motor Slip Compensation: automatic whatever the load || adjustable || not available in voltage/frequency ratio motor control
• Discrete Output Number: 2
• Minimum Switching Current: 3 mA 24 V DC configurable relay logic
• Analogue Output Number: 1
• Physical Interface: 2-wire RS 485
• Continuous Output Current: 79 A 380 V || 79 A 460 V
• Number Of Addresses: 1-247
• Tightening Torque: 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 24 N.m, 212 lb.in U/T1, V/T2, W/T3) || 7 N.m, 62 lb.in L1/R, L2/S, L3/T)
• Discrete Input Type: F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
• Speed Range: 1-10
• Isolation: electrical between power and control
• Local Signalling: for DC bus energized 1 LED (red)
• Linearity Error: VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
• Specific Application: HVAC
• Output Voltage: <= power supply voltage
• Nominal Switching Frequency: 8 kHz
• Width: 284 mm
• Transmission Rate: 9600 bps or 19200 bps
• Braking To Standstill: by DC injection
• Depth: 343 mm
• Protection Type: overheating protection drive || line supply undervoltage drive || against input phase loss drive || thermal protection motor || motor phase break motor || with PTC probes motor || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit drive || against exceeding limit speed drive || line supply overvoltage and undervoltage drive
• Supply: internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
• Analogue Input Type: VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
• Sampling Duration: 2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
• Speed Accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn
• Option Card: communication card LonWorks

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111244EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI111242EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CSA || UL || NOM 117 || C-tick
• Standards: IEC 61800-5-1 || EN 61800-3 environments 2 category C1 || EN 61800-3 environments 1 category C3 || IEC 61800-3 environments 2 category C3 || EN 55011 group 1 class B || IEC 61800-3 category C1 || IEC 61800-3 environments 1 category C2 || EN 61800-5-1 || IEC 61800-3 environments 1 category C3 || EN 61800-3 environments 2 category C2 || EN 61800-3 environments 1 category C2 || IEC 61800-3 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 environments 2 category C2 || EN 61800-3 category C1 || EN 61800-3 environments 1 category C1 || EN 61800-3 || IEC 61800-3 environments 1 category C1 || EN 61800-3 environments 2 category C3
• Electromagnetic Compatibility: electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
• Ambient Air Temperature For Operation: -10-40 °C without derating) || 40-50 °C with derating factor)
• Shock Resistance: 15 gn 11 ms IEC 60068-2-27
• Environmental Characteristic: classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
• Marking: CE
• Vibration Resistance: 1.5 mm 3-13 Hz)EN/IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
• Noise Level: 64 dB 86/188/EEC
• Pollution Degree: 3 IEC 61800-5-1
• Regulation Loop: adjustable PI regulator
• Ambient Air Temperature For Storage: -25-70 °C
• Relative Humidity: 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
• Assembly Style: with heat sink
• Ip Degree Of Protection: IP55 EN/IEC 61800-5-1 || IP55 EN/IEC 60529
• Operating Altitude: 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
• Operating Position: vertical +/- 10 degree
