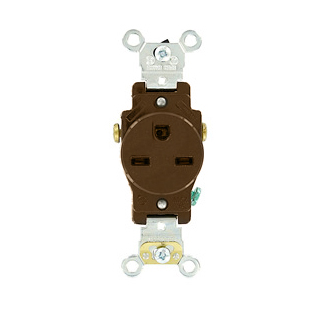

Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Side Wire,NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Brown

NEMA

• WD-6

Color Variations

• Brown
• Ivory
• White

• RoHS Compliant: Yes

AC Horsepower Ratings

• At Rated Voltage: 1-1/2 HP

Electrical Specifications

• Amperage: 15 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 250 VAC
• Wire: 3

Product Features

• Grounding: Self-Grounding
• Body Material: Thermoplastic Nylon
• Face Material: Thermoplastic Nylon
• Color: Brown
• Device Type: Single Receptacle Outlet
• Feature 4: Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C

Material Specifications

• Clamp Nuts: Zinc-Plated Steel
• Ground Clips: Brass
• Grounding Screw: Plated Steel
• Line Contacts: Phosphor Bronze
• Strap Material: Galvanized Steel with Riveted Ground Contacts
• Terminal Screws: Plated Brass

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Torque Range: 14-16 inch pounds

Standards and Certifications

• NEMA: WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Warranty: 10-Year Limited
