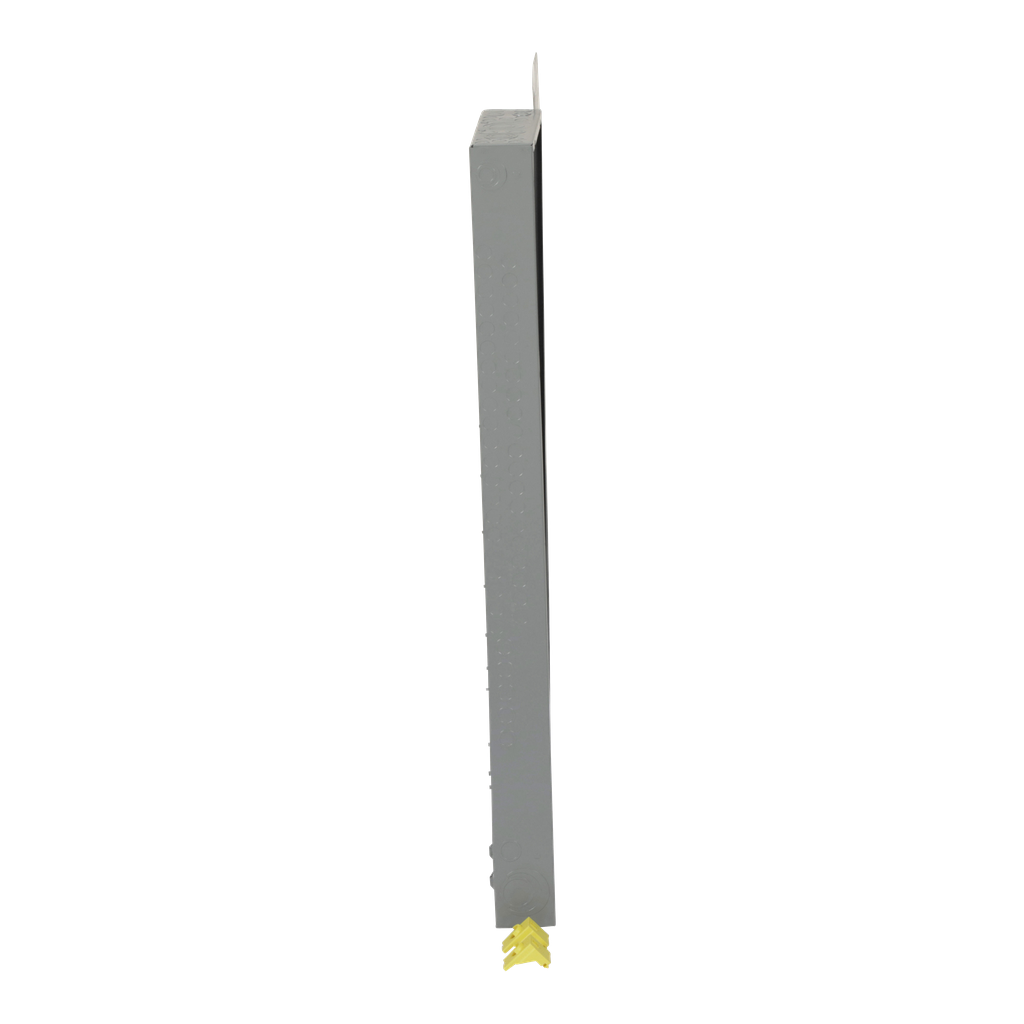

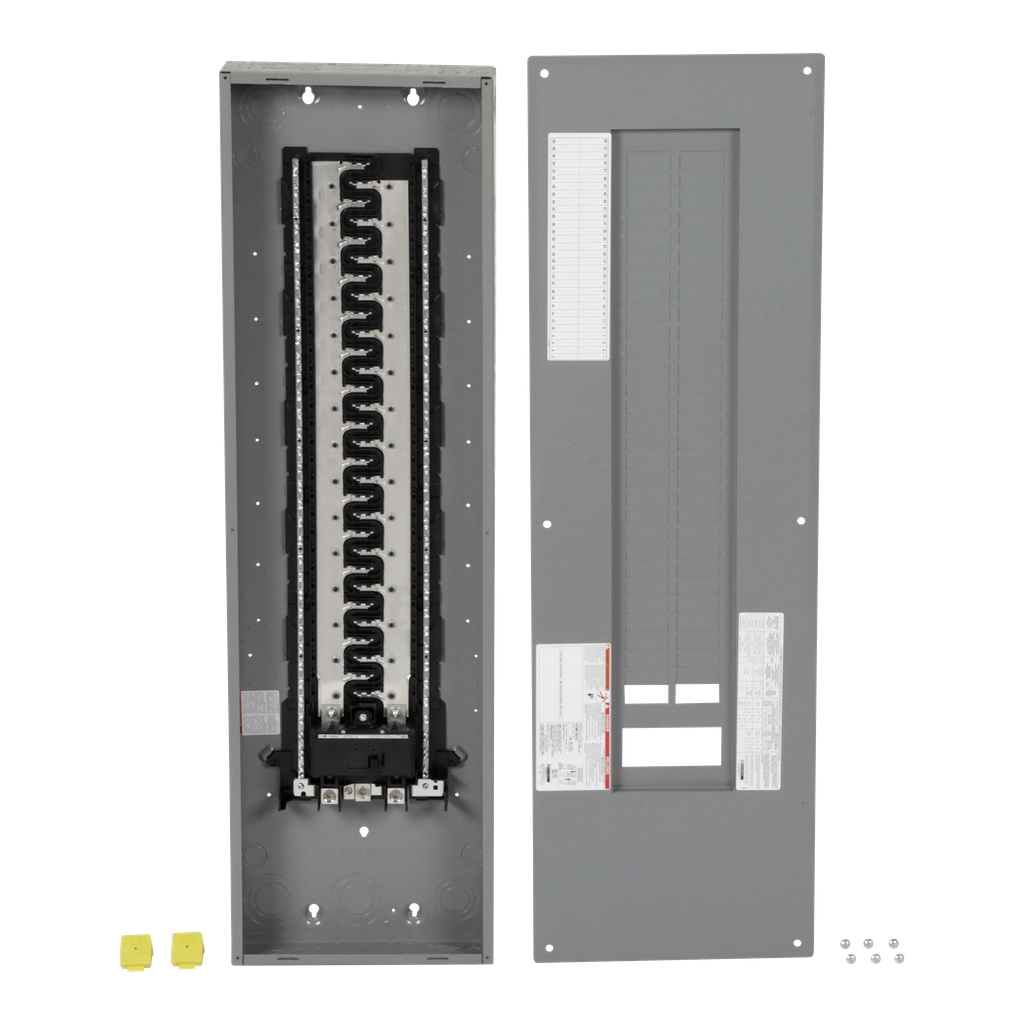

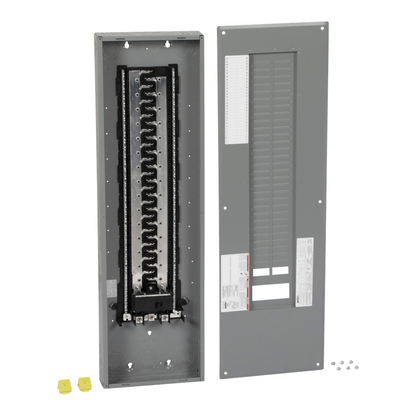

Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

• Nema Degree Of Protection: NEMA 1 indoor
• Cover Type: combination flush/surface cover
• Range Of Product: Homeline
• Provided Equipment: circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
• Line Rated Current: 200 A
• Product Or Component Type: Load Center
• Number Of Circuits: 120
• Number Of Spaces: 60
• Load Center Type: PoN Convertible Mains (breaker)

Complementary

• Height: 1235 mm
• Short-Circuit Current: 22 kA
• Number Of Tandem Circuit Breakers: 60
• Material: tin plated aluminium busbar
• Surface Finish: baked enamel Gray
• Enclosure Material: welded sheet steel
• Awg Gauge: AWG 4...250 kcmil copper or aluminium
• Width: 362 mm
• Wiring Configuration: 3-wire
• Depth: 95 mm
• Device Composition: grounding bar (ordered separately)
• Phase: 1 phase
• Box Number: 25

Offer Sustainability

• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1403002
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes

Environment

• Product Certifications: UL listed file E-6294
• Ambient Air Temperature For Operation: -5 °C || 40 °C
