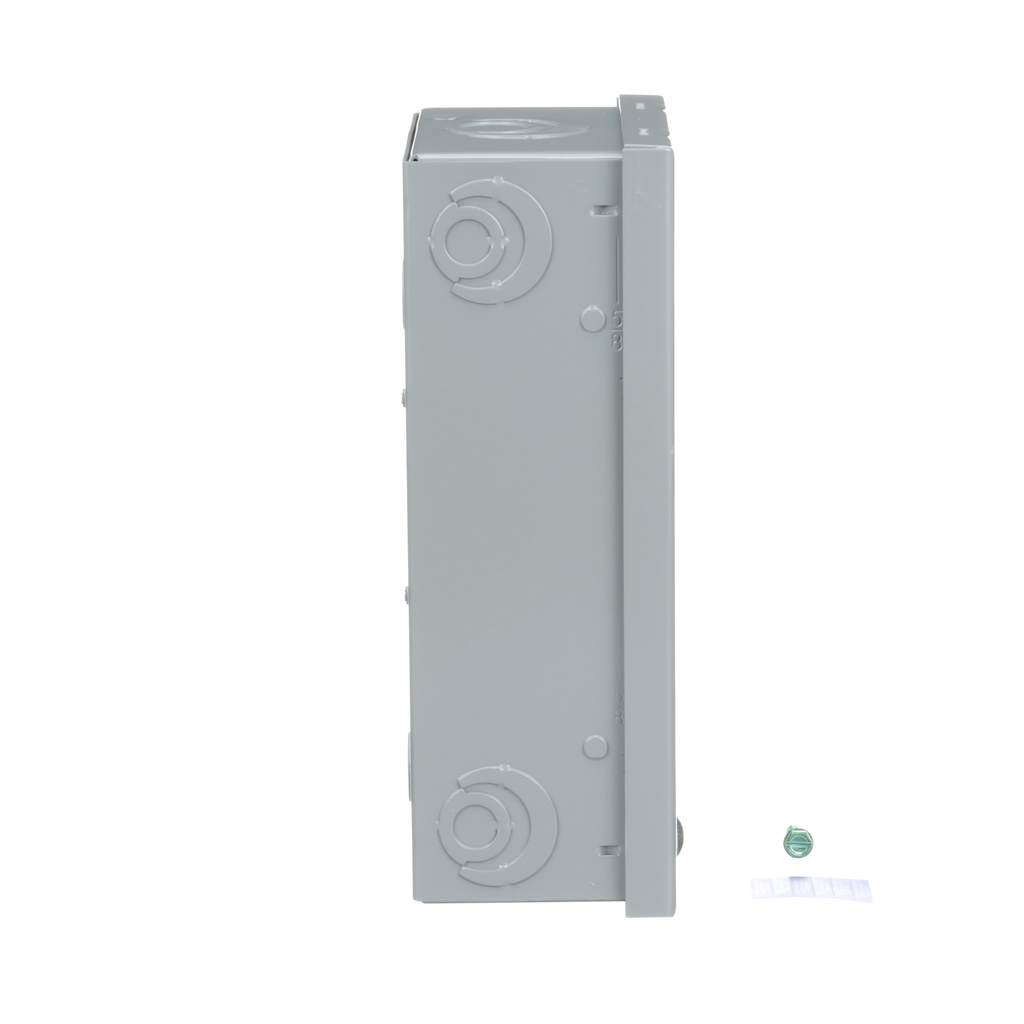

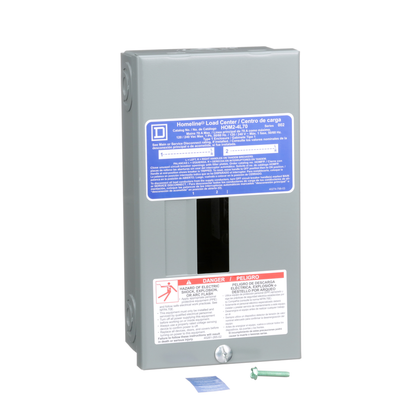

Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover

• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Number Of Circuits: 4
• Number Of Spaces: 2
• Nema Degree Of Protection: NEMA 1 indoor
• Cover Type: surface cover
• Line Rated Current: 70 A
• Load Center Type: Fixed Mains (lugs)

Contractual warranty

• Warranty: Lifetime

Complementary

• Height: 236 mm
• Phase: 1 phase
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 2
• Material: tin plated aluminium busbar
• Surface Finish: baked enamel Gray
• Enclosure Material: welded sheet steel
• Awg Gauge: AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper
• Width: 122 mm
• Wiring Configuration: 3-wire
• Depth: 81 mm
• Box Number: 2

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1403002
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive: Compliant

Environment

• Product Certifications: UL listed file E-6294
• Ambient Air Temperature For Operation: -5 °C || 40 °C
