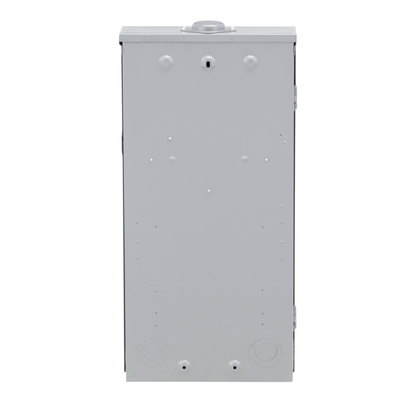

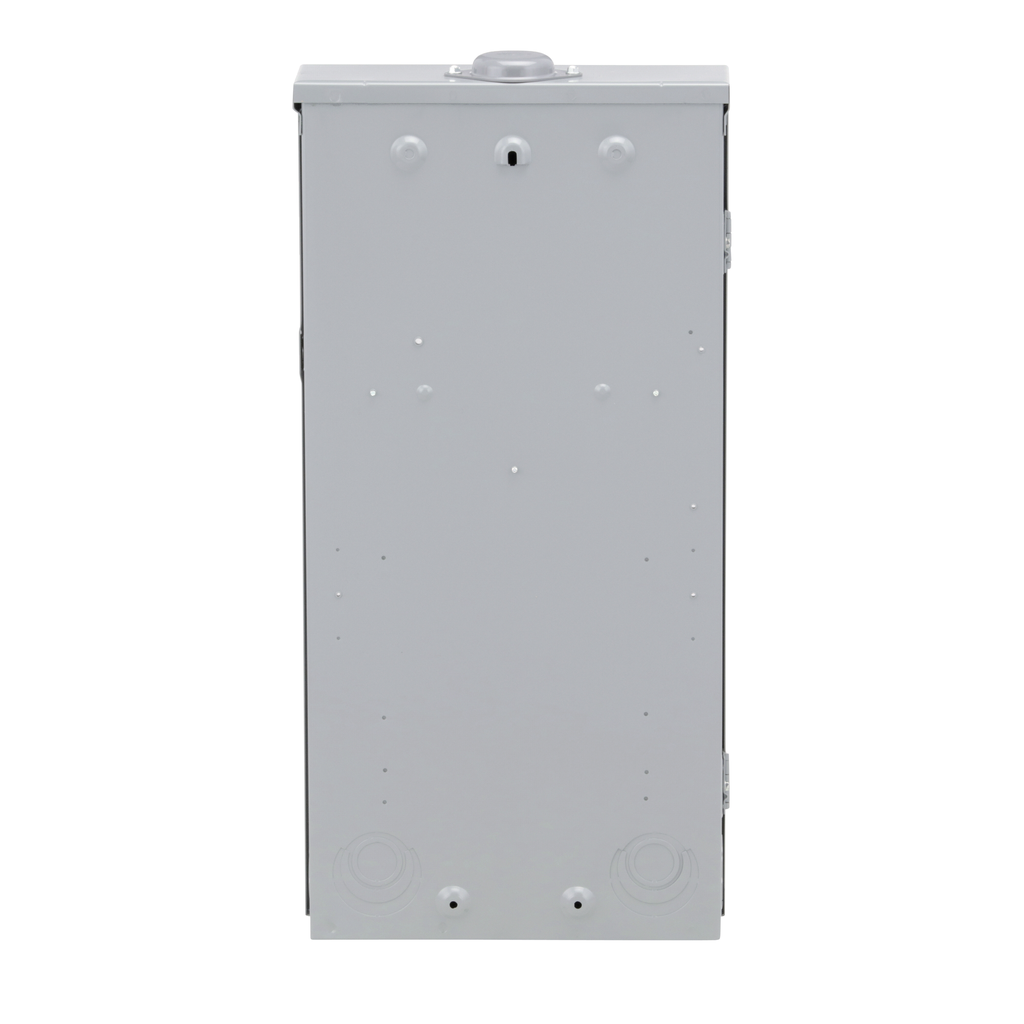

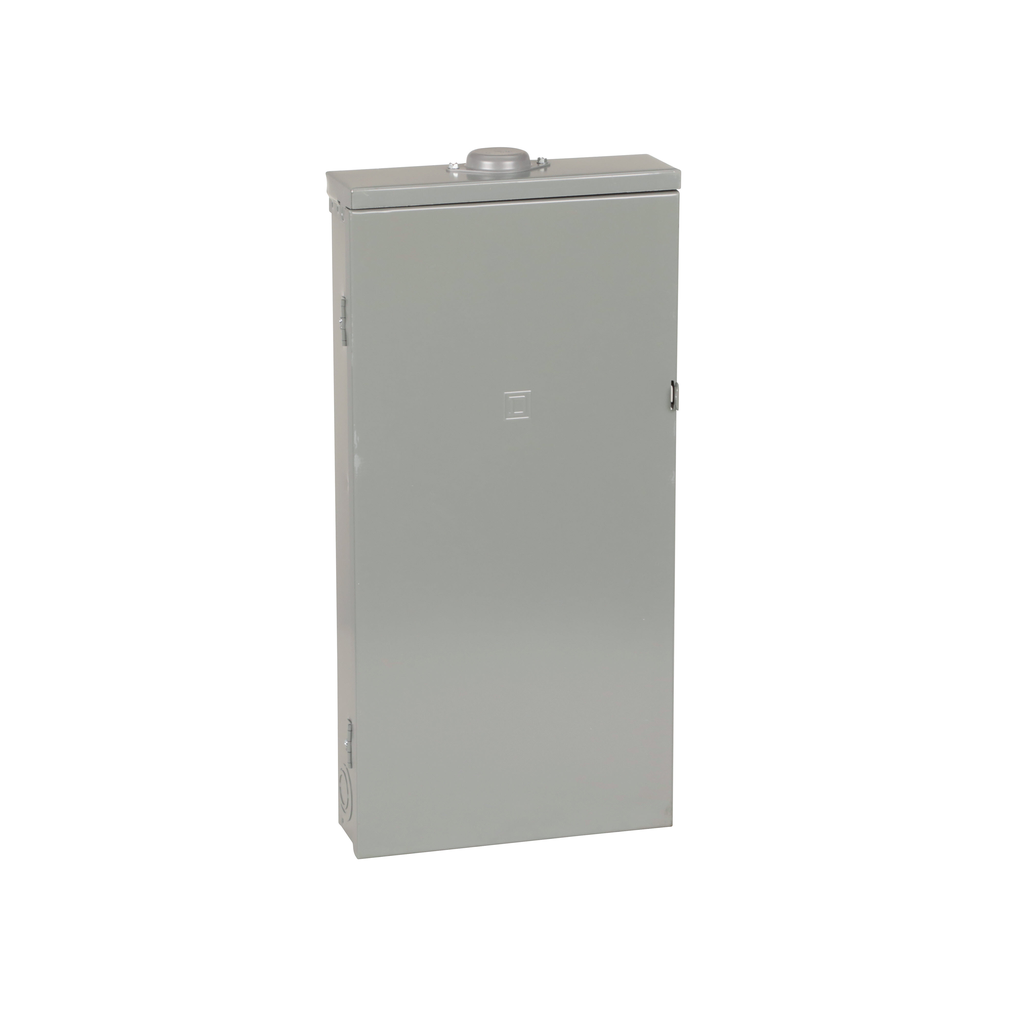

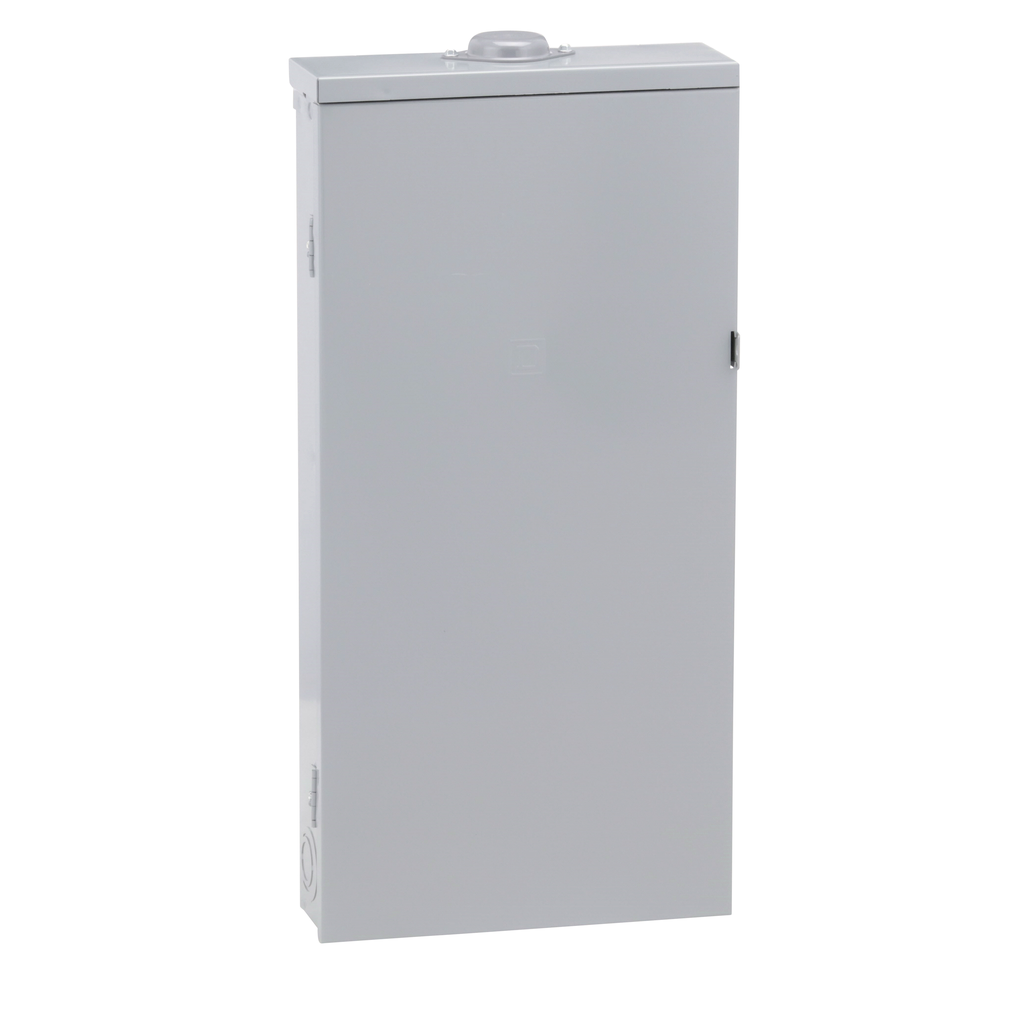

Load center, Homeline, 1 phase, 16 spaces, 32 circuits, 225A convertible main breaker, PoN, NEMA3R

• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Number Of Circuits: 32
• Number Of Spaces: 16
• Nema Degree Of Protection: NEMA 3R outdoor
• Cover Type: surface cover
• Line Rated Current: 225 A
• Load Center Type: PoN Convertible Mains (breaker)

Complementary

• Height: 758 mm
• Phase: 1 phase
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 16
• Material: tin plated aluminium busbar
• Surface Finish: baked enamel Gray
• Enclosure Material: welded galvannealed steel
• Awg Gauge: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Width: 375 mm
• Wiring Configuration: 3-wire
• Depth: 115 mm
• Box Number: 6R

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1403002
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive: Compliant

Environment

• Product Certifications: UL listed file E-6294
• Ambient Air Temperature For Operation: -5 °C || 40 °C
