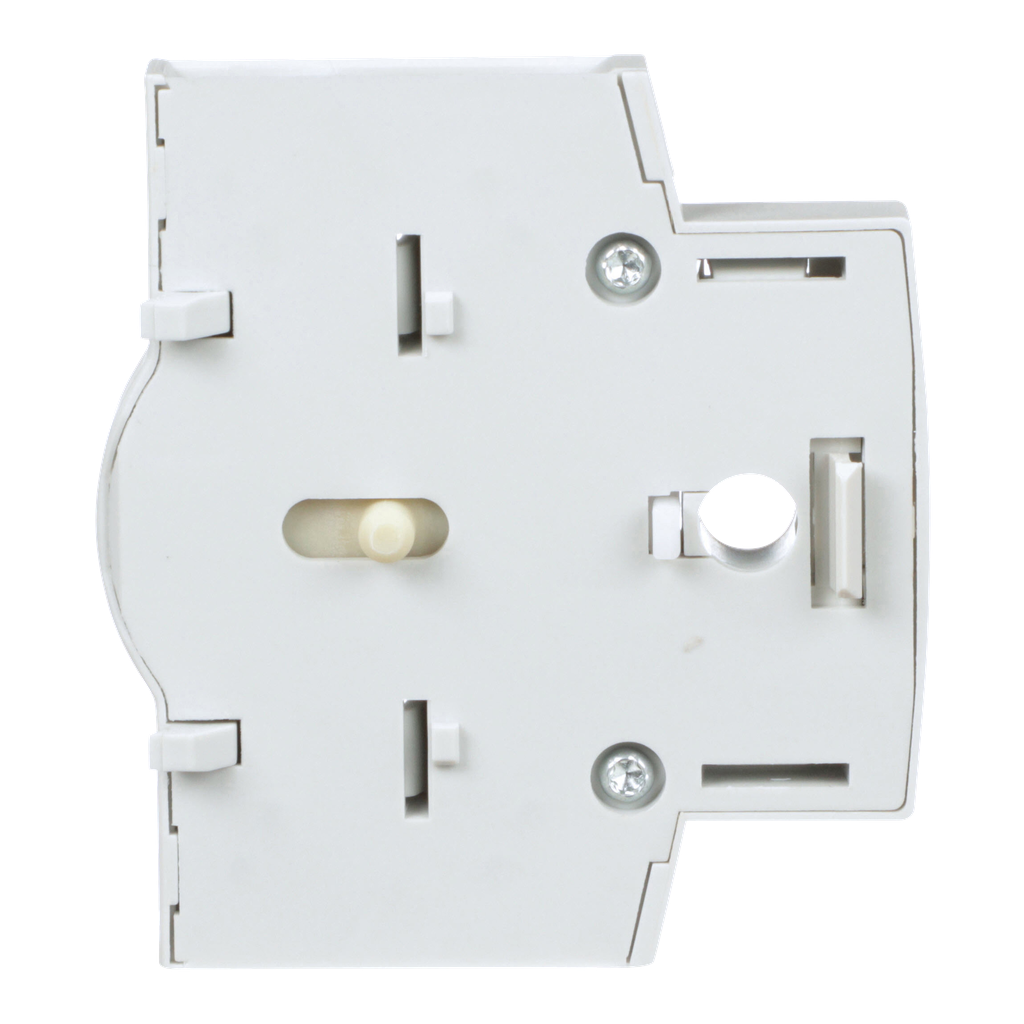

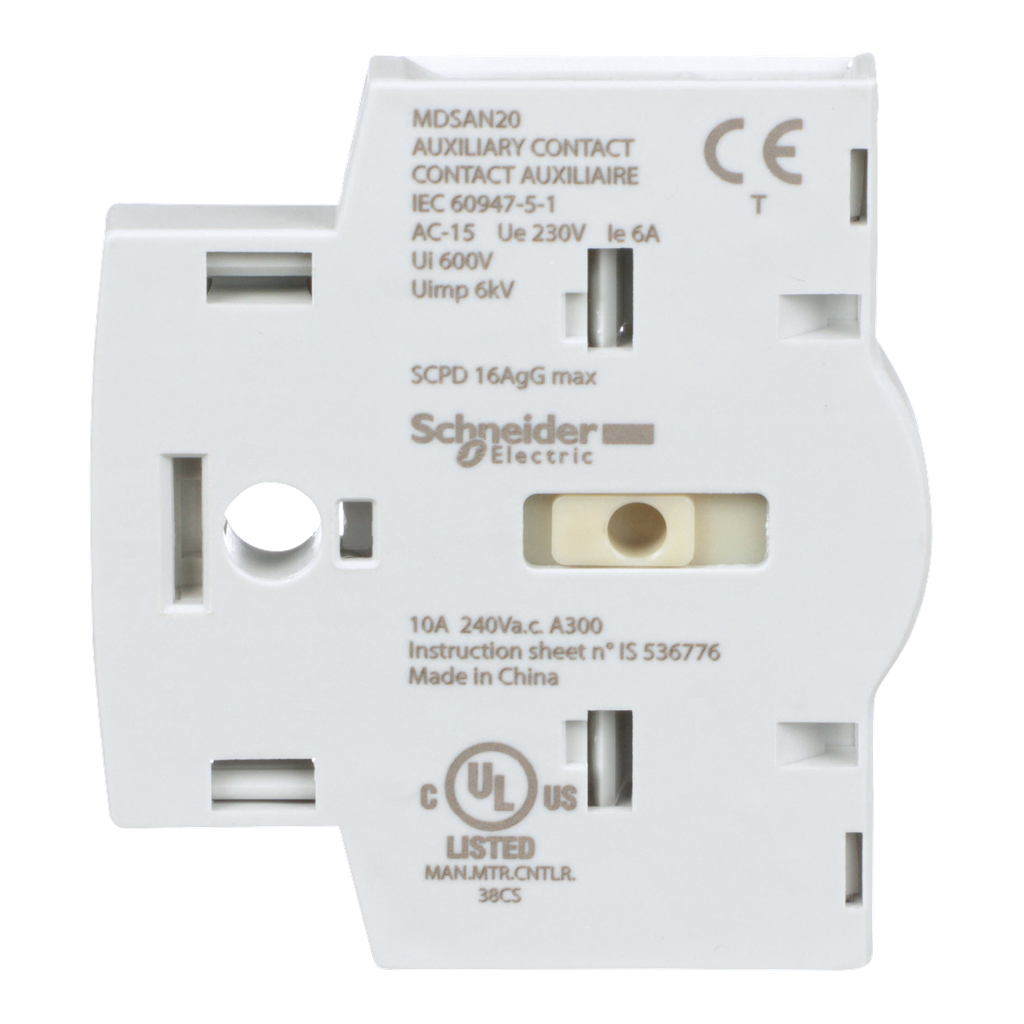

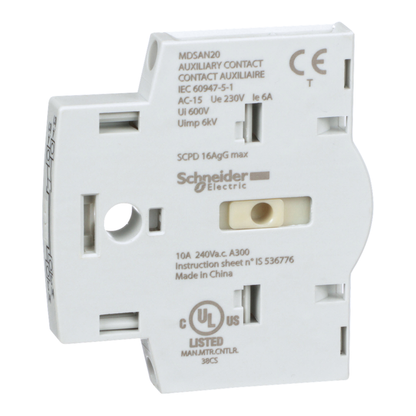

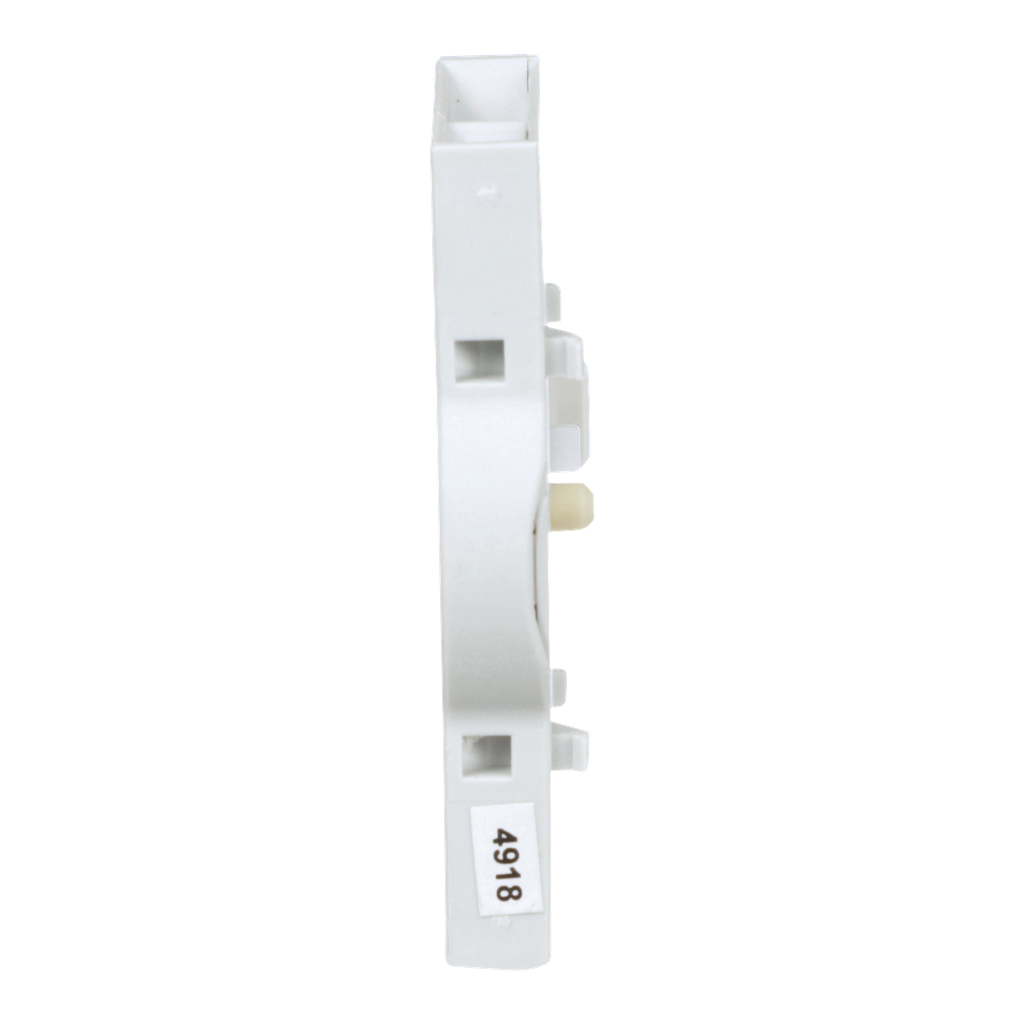

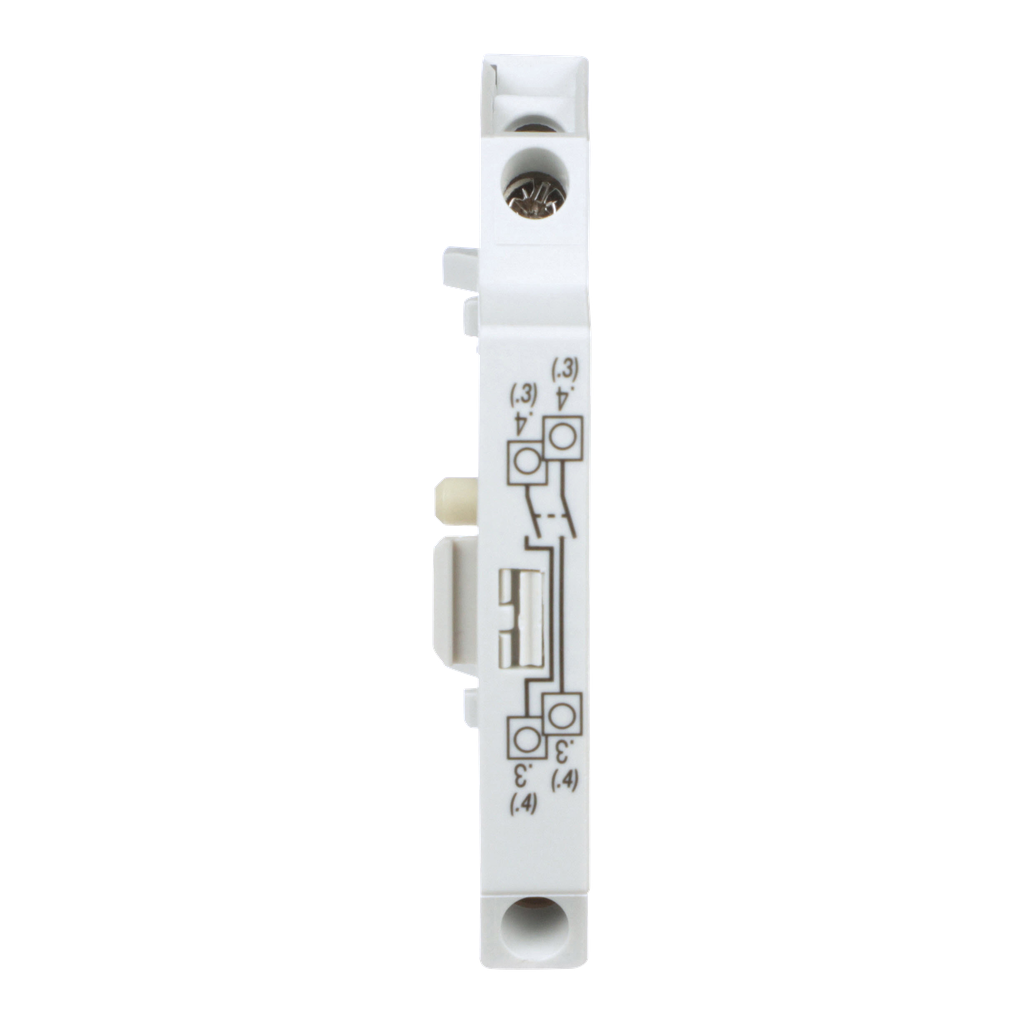

MD motor disconnect switch, auxiliary contact module, 2 NO
MD motor disconnect switch, auxiliary contact module, 2 NO
MDSAN20
Available to Order
Couldn't load pickup availability
Product Description
- Auxiliary Contact Composition: 2 NO
- Range Of Product: MD
- Product Or Component Type: Auxiliary Contact Module
- Product Destination: motor disconnect switch MD3304X || motor disconnect switch MD3604X
Contractual warranty
- Warranty: 18 months
Offer Sustainability
- China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1304031
- Sustainable Offer Status: Green Premium product
- Toxic Heavy Metal Free: Yes
- Eu Rohs Directive: Compliant
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Formaldehyde (gas), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc: Yes
Spec Sheet
CONTACT AUXILIARY 2 N/O MODULE - MDSAN20 (dwg)
CONTACT AUXILIARY 2 N/O MODULE - MDSAN20 (dxf)
UL Certificate E164864 NLRV Manual Motor Controllers - UL_Certificate_E164864_NLRV (pdf)
MD Motor Disconnect Accessories—Auxiliary Contacts (MDSAN11/MDSAN20) and Fourth Pole (MDS30P) - IS+536776_01 (pdf)
Technical Drawing
CONTACT AUXILIARY 2 N/O MODULE - MDSAN20 (pdf)CONTACT AUXILIARY 2 N/O MODULE - MDSAN20 (dwg)
CONTACT AUXILIARY 2 N/O MODULE - MDSAN20 (dxf)
Handout
Square D MD Enclosed Motor Disconnect Switch Handout - 3150HO1001 (pdf)Certificate
MD Enclosed Motor Disconnect Switch, Certificate, UL - UL_Certificate_E164864_NLRV7 (pdf)UL Certificate E164864 NLRV Manual Motor Controllers - UL_Certificate_E164864_NLRV (pdf)
Environmental Disclosure
30-100A General & Heavry Duty F-series Safety Switches - ENVPEP1304031_V1 (pdf)Instruction sheet
30-100 A, LK4DU3CN, LK4GU3CN, LK4JU3CN, Load Break Switch Instruction Bulletin - 30072-454-11_06 (pdf)MD Motor Disconnect Accessories—Auxiliary Contacts (MDSAN11/MDSAN20) and Fourth Pole (MDS30P) - IS+536776_01 (pdf)
