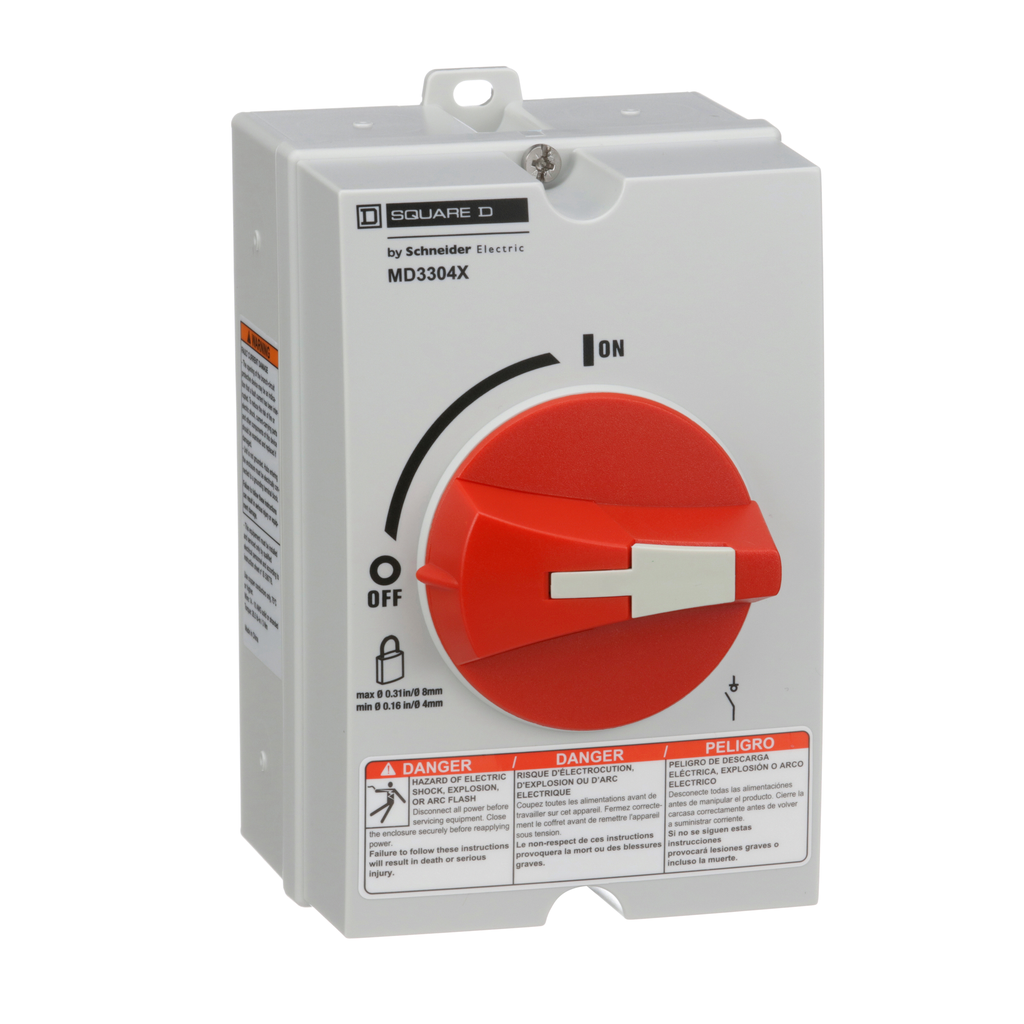

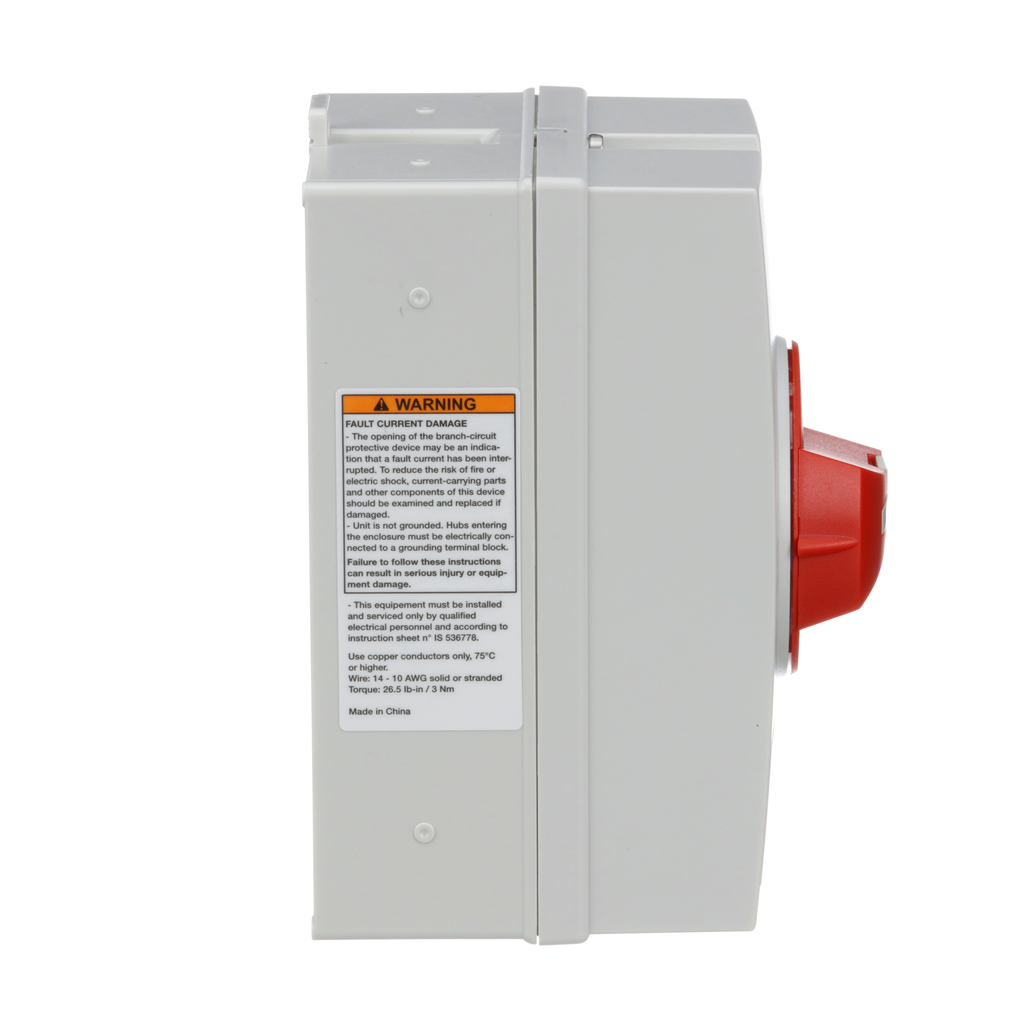

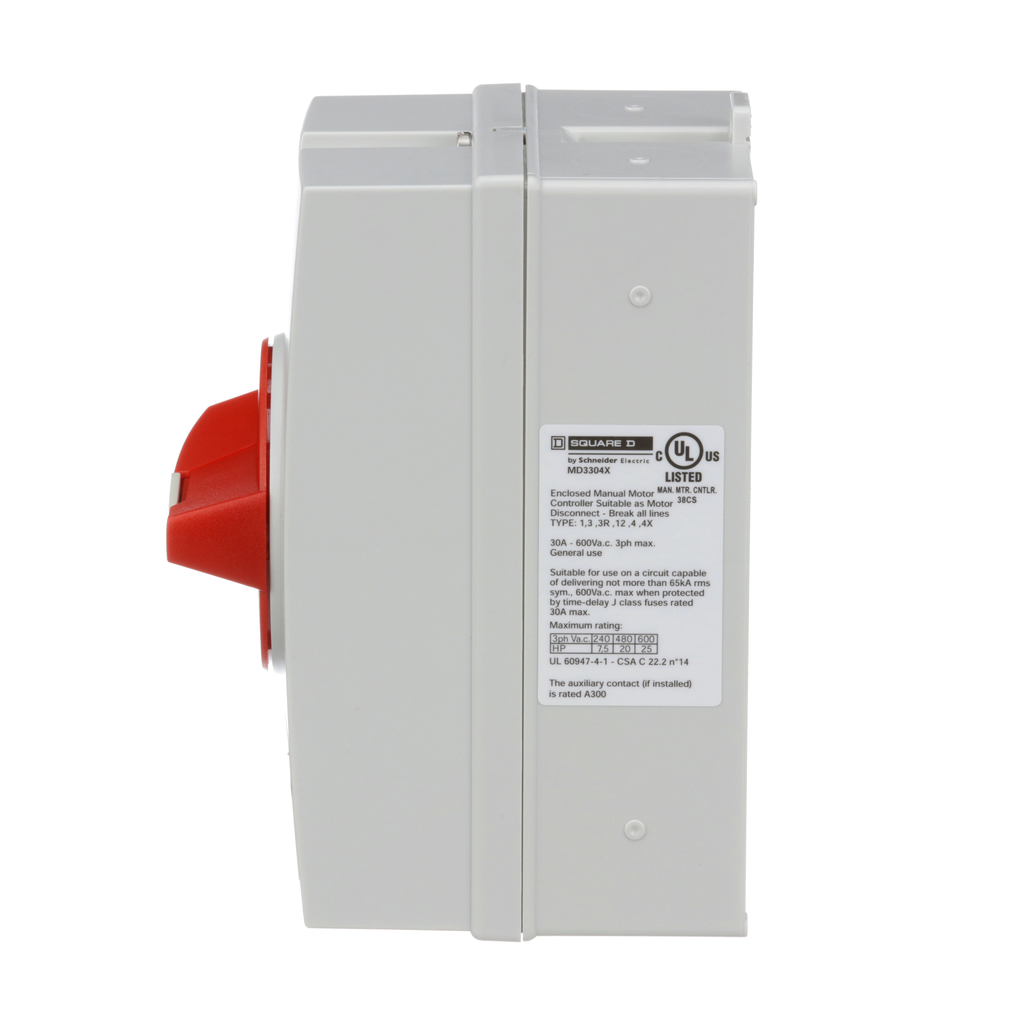

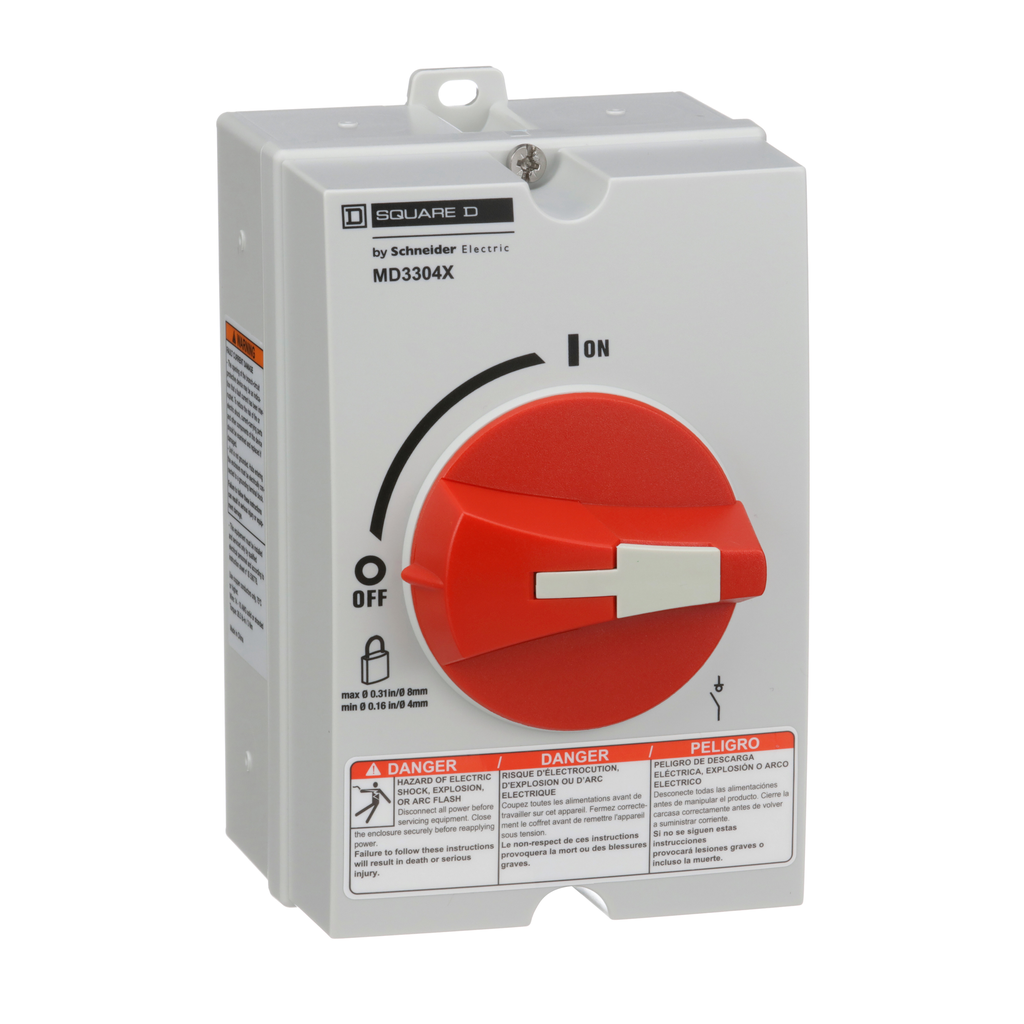

Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure

• Product Certifications: UL Listed
• Range Of Product: MD
• Product Or Component Type: Motor Disconnect Switch
• Nema Degree Of Protection: NEMA 4X
• Line Rated Current: 30 A
• Maximum Horse Power Rating: 7.5 hp 220/240 V AC || 20 hp 440/480 V AC || 25 hp 600 V AC

Contractual warranty

• Warranty: 18 months

Complementary

• Height: 6.38 in
• Net Weight: .68 kg
• Width: 3.90 in
• Depth: 4.37 in

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1304031
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Formaldehyde (gas), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive: Compliant
