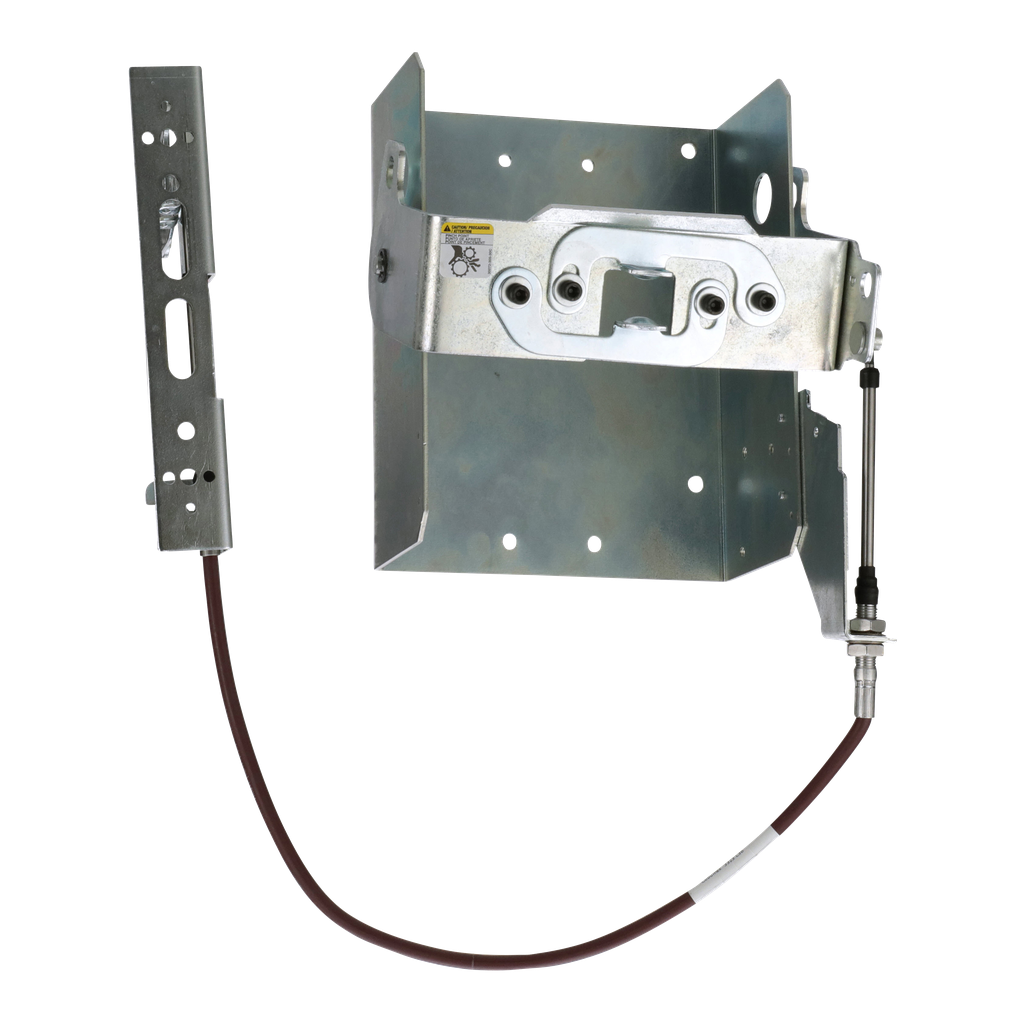

Disconnect mechanism, circuit breaker, cable operated, 600A, 4 pole, PowerPacT D and L breaker, 60 inch cable
Disconnect mechanism, circuit breaker, cable operated, 600A, 4 pole, PowerPacT D and L breaker, 60 inch cable
9422CSJ504
Available to Order
Couldn't load pickup availability
Product Description
- Range Of Product: 9422C
- Product Or Component Type: Single Cable Operating Mechanism
Contractual warranty
- Warranty: 18 months
Complementary
- Number Of Cables: 1
- Cable Length: 60 in
- Provided Equipment: ordered separately
- Circuit Breaker Name: MG-NSJ 4
Offer Sustainability
- China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Pvc Free: Yes
- Toxic Heavy Metal Free: Yes
- Eu Rohs Directive: Compliant
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc: Yes
Spec Sheet
Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
Technical drawing for Cable Operating Mechanism - 9422_CSJ_OUTLINE_002 (pdf)
Technical drawing for Cable Operating Mechanism - 9422_CSJ_OUTLINE_002 (dwg)
Type 9421L Circuit Breaker Mechanisms, Certificate, UL - UL_Certificate_E62922_DIHS8+for+Canada (pdf)
Handout
Operating mechanisms for circuit breakers - 998-20511116_GMA_US_HR (pdf)Catalog
Digest Catalog 08: Operating Mechanisms and Disconnect Switches (FEB 2021) - 0100CT1901_SEC-08_FEB-2021 (pdf)Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
User guide
External Disconnect Enclosure Application Installation Instructions - 9400IB1901 (pdf)Technical Drawing
Technical drawing for Cable Operating Mechanism - 9422_CSJ_OUTLINE_002 (dxf)Technical drawing for Cable Operating Mechanism - 9422_CSJ_OUTLINE_002 (pdf)
Technical drawing for Cable Operating Mechanism - 9422_CSJ_OUTLINE_002 (dwg)
Certificate
Type 9421L Circuit Breaker Mechanisms, Certificate, UL - UL_Certificate_E62922_DIHS2 (pdf)Type 9421L Circuit Breaker Mechanisms, Certificate, UL - UL_Certificate_E62922_DIHS8+for+Canada (pdf)
