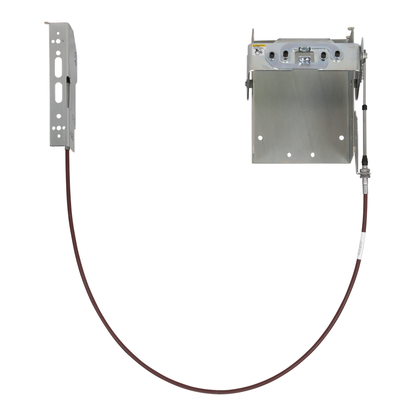

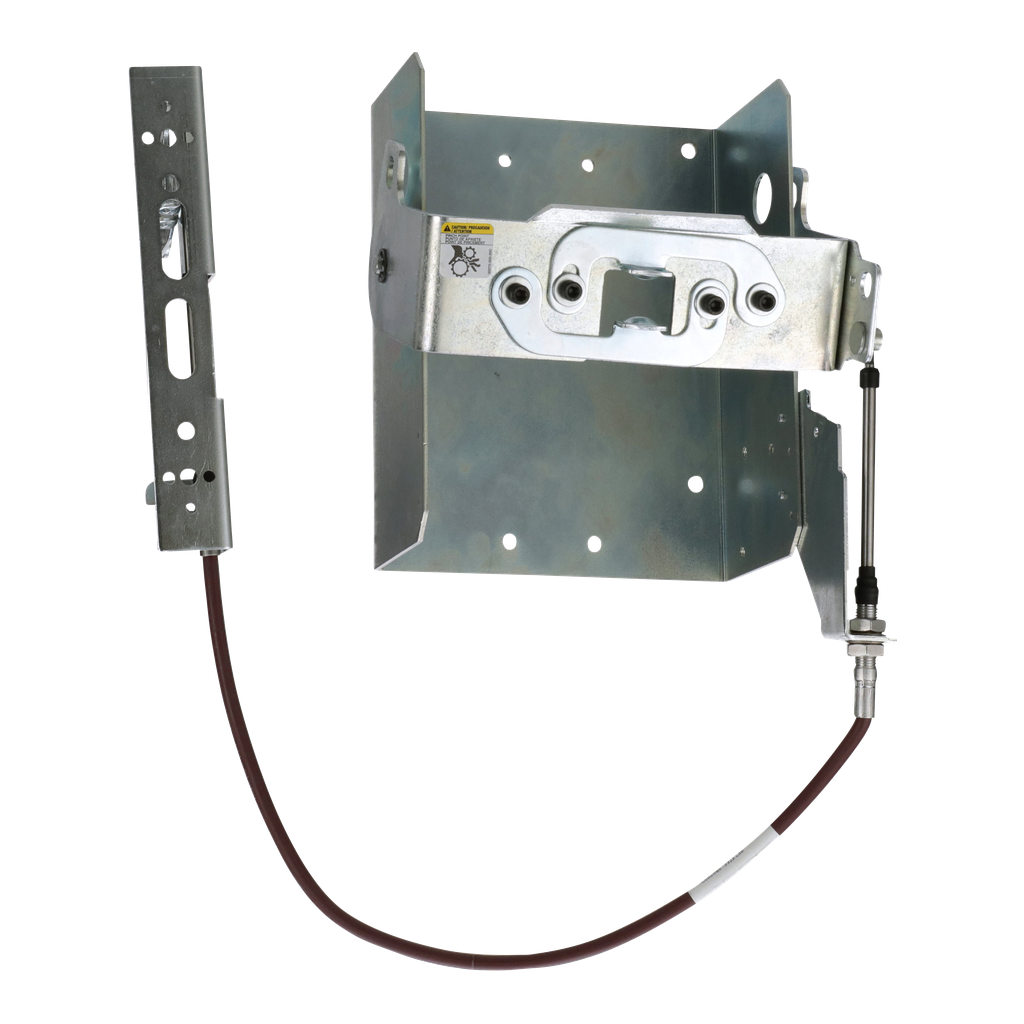

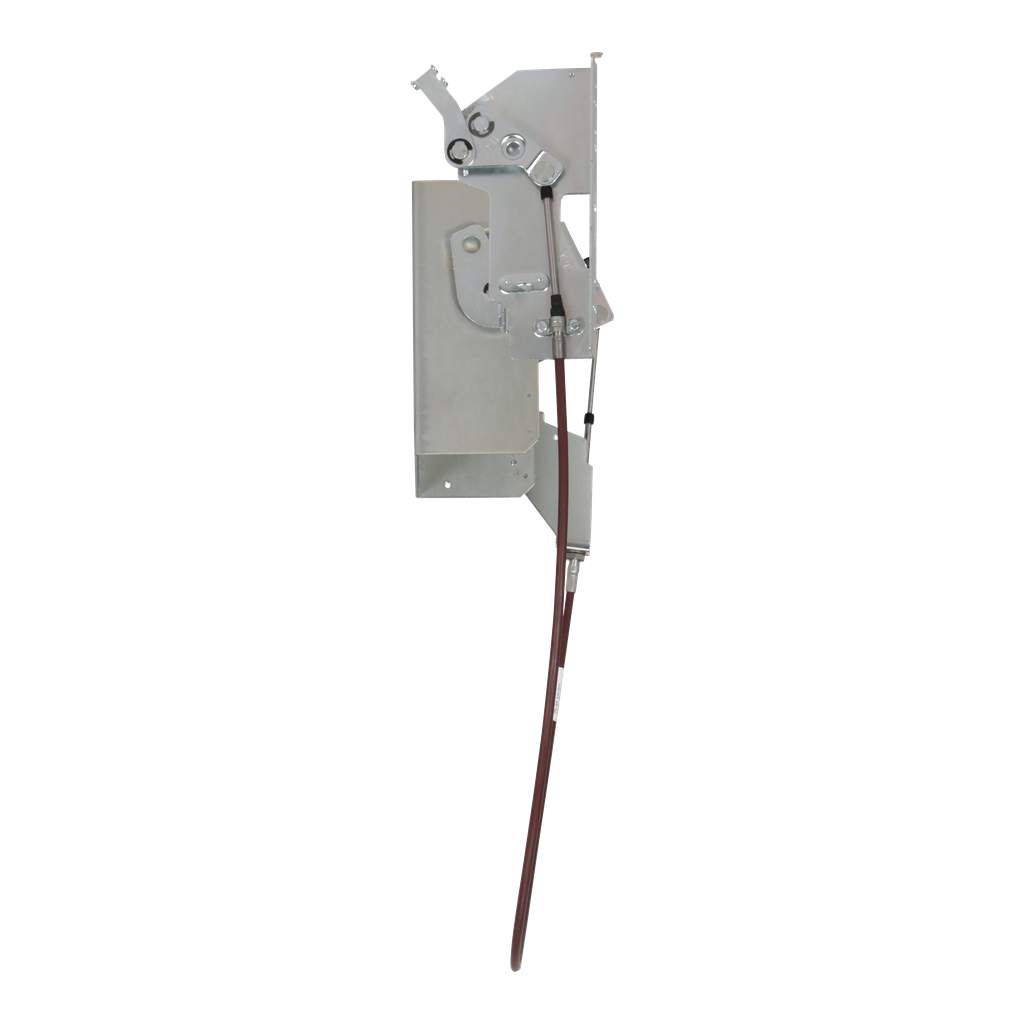

Disconnect mechanism, circuit breaker, cable operated, 600A, 3 pole, PowerPacT D and L breaker, 60 inch cable
Disconnect mechanism, circuit breaker, cable operated, 600A, 3 pole, PowerPacT D and L breaker, 60 inch cable
9422CSJ50
Available to Order
Couldn't load pickup availability
Product Description
- Range Of Product: 9422C
- Product Or Component Type: Single Cable Operating Mechanism
Contractual warranty
- Warranty: 18 months
Complementary
- Number Of Cables: 1
- Cable Length: 60 in
- Provided Equipment: ordered separately
- Circuit Breaker Name: MG-NSJ 3 || PowerPact D 3
Offer Sustainability
- China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Pvc Free: Yes
- Toxic Heavy Metal Free: Yes
- Eu Rohs Directive: Compliant
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc: Yes
