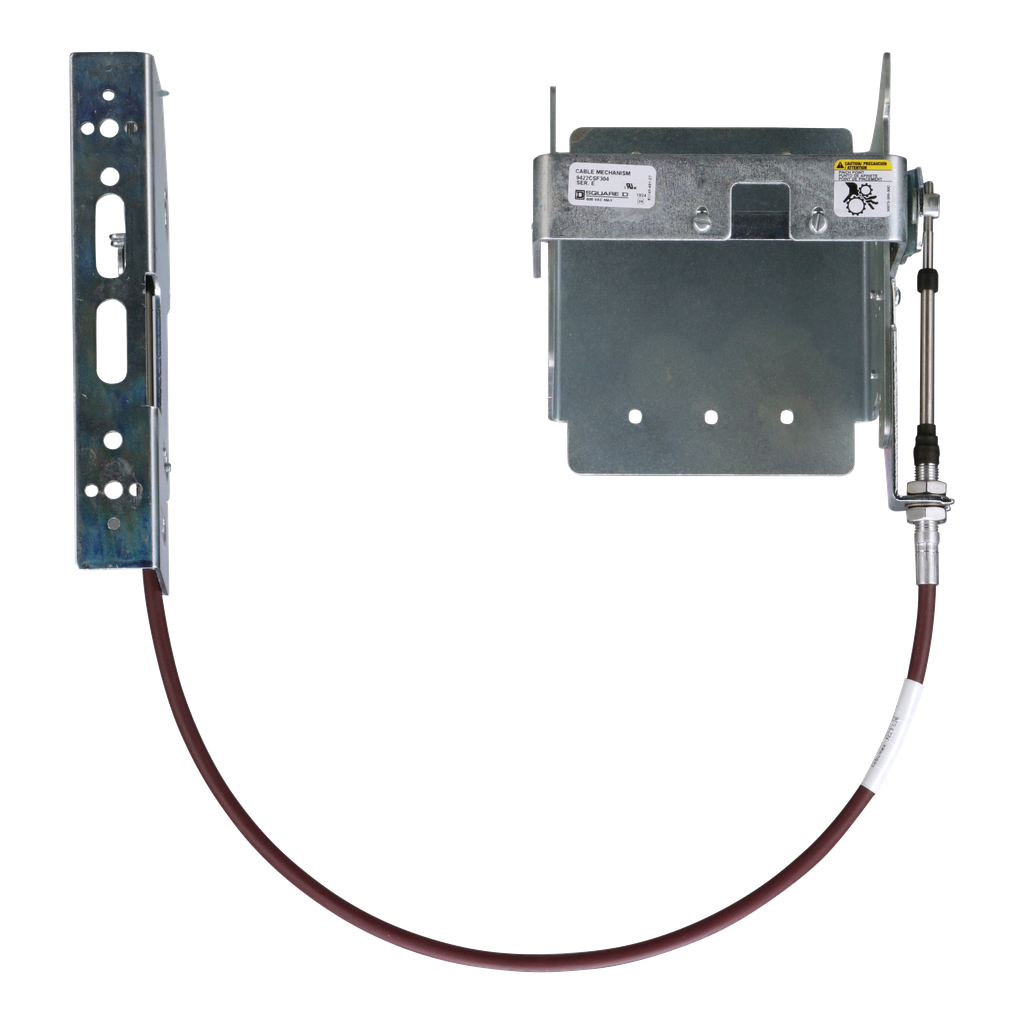

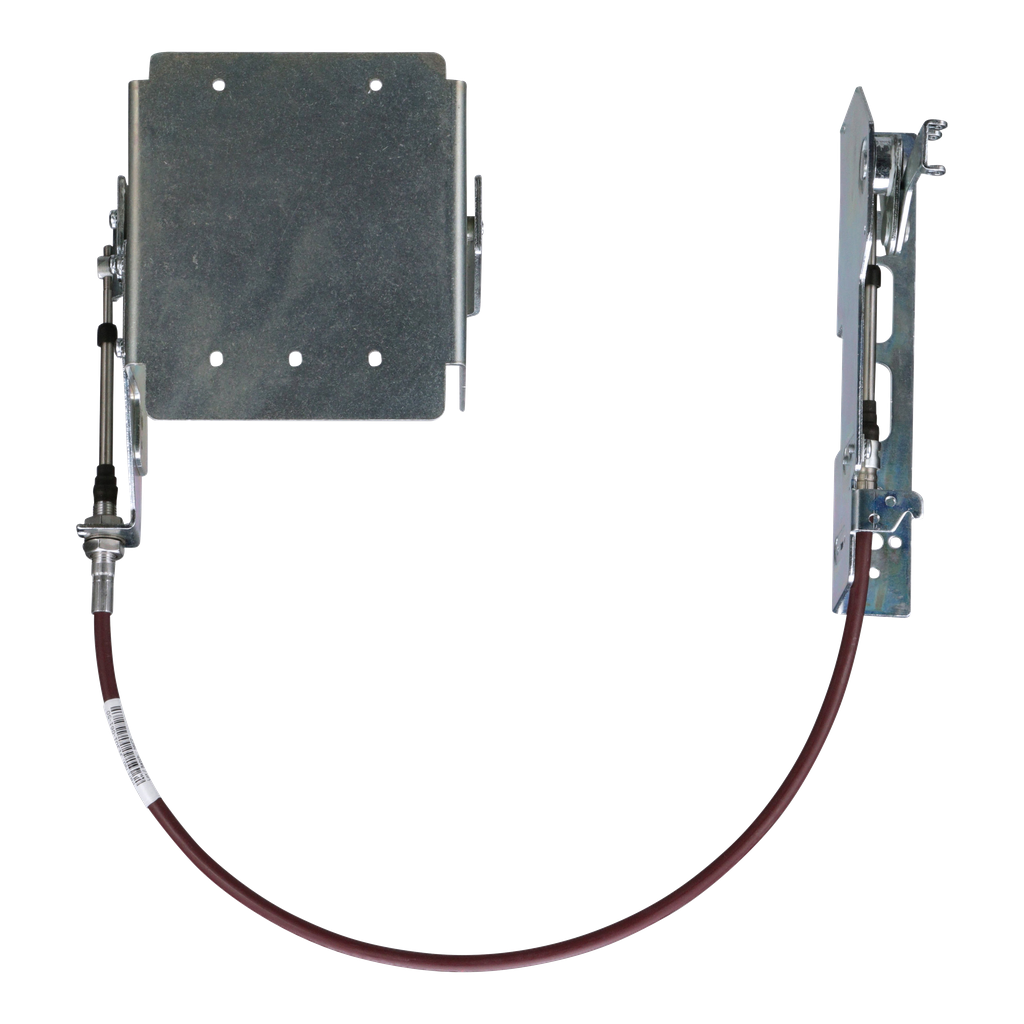

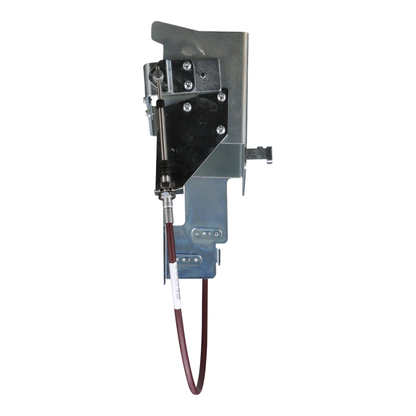

Disconnect mechanism, circuit breaker, cable operated, 250A, 4 poles, MG-NSF circuit breaker, 36 inch cable

• Range Of Product: 9422C
• Product Or Component Type: Single Cable Operating Mechanism

Contractual warranty

• Warranty: 18 months

Complementary

• Number Of Cables: 1
• Cable Length: 36 in
• Provided Equipment: ordered separately
• Circuit Breaker Name: MG-NSF 4

Offer Sustainability

• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Pvc Free: Yes
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes

Handout

Instruction sheet

User guide

Technical Drawing

Certificate

Technical illustration
