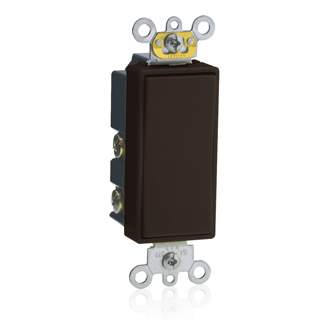

15 Amp, 120/277 Volt, Decora Plus Rocker Double-Throw Ctr-OFF Momentary Contact Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired

NEMA

• WD-1
• WD-6

Color Variations

• Brown

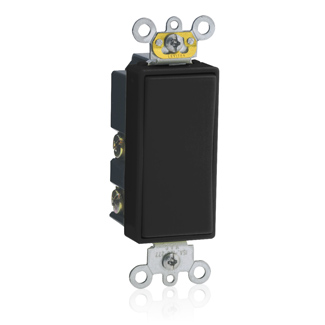

• Ebony

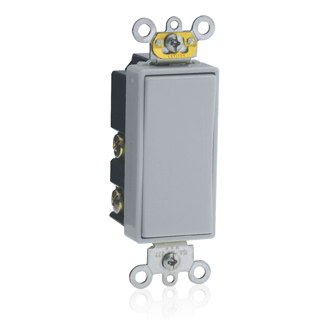

• Gray

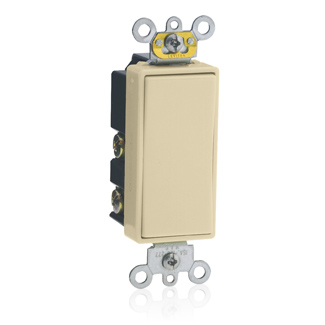

• Ivory
• Light Almond

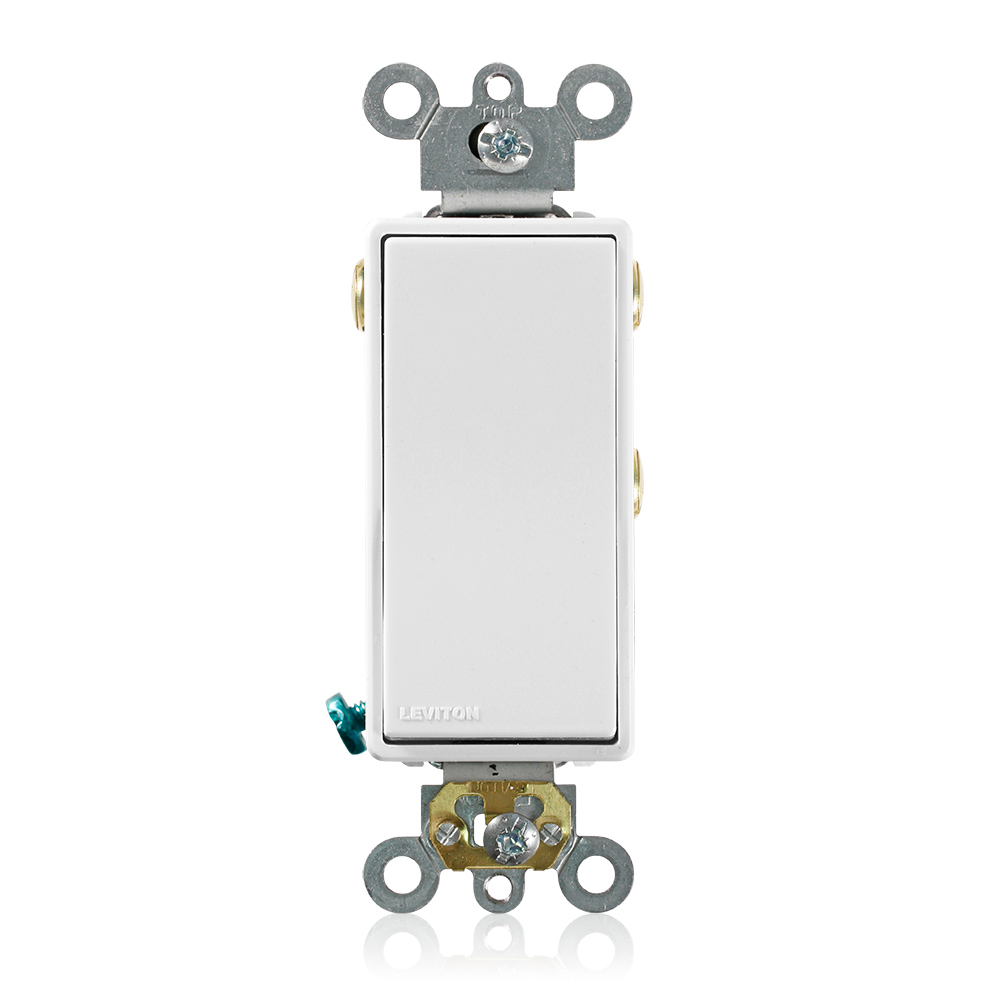

• White

• Country of Origin: Mexico

Product Features

• HP Rating: 1/2HP-120V 2HP-240V-277V
• Grounding: Self-Grounding
• Voltage: 120/277 VAC
• Color: Brown
• Brand: Decora Plus
• Device Type: Rocker Switch
• Feature: Momentary Contact CTR OFF
• Function: Single-Pole Double-Throw
• Grade: Commercial Specification Grade

AC Horsepower Ratings

• Max. Amperage: 12 Amp

Electrical Specifications

• Amperage: 15 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 30,000 cycles minimum
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C

Material Specifications

• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Strap Material: Steel

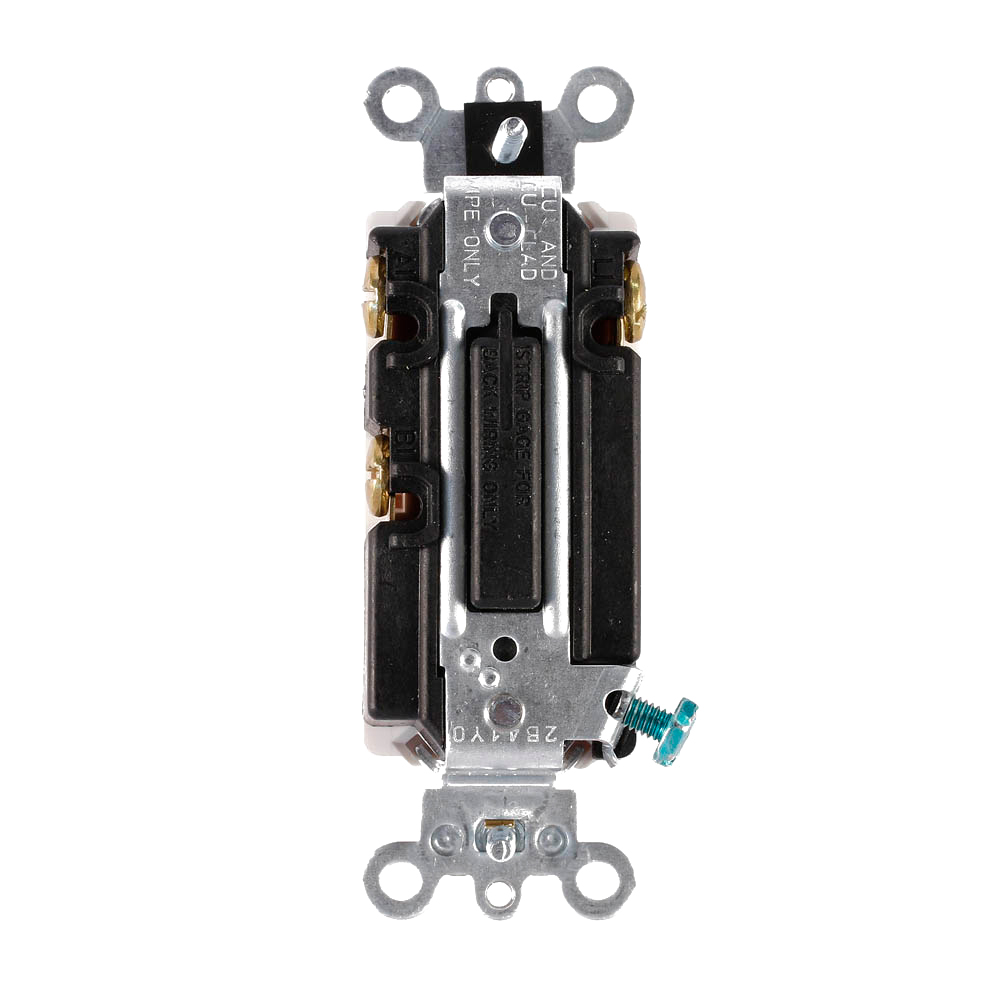

Mechanical Specifications

• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back or Side Wire

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Standard: UL 20
• Warranty: 10-Year Limited
