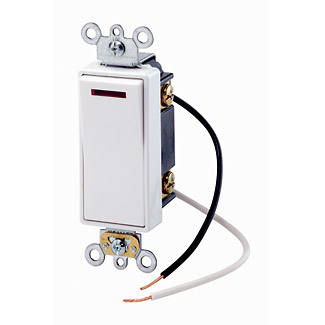

20 Amp, 277 Volt, Decora Plus Rocker Pilot Light - Illuminated ON - Req. Neutral 3-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White

NEMA

• WD-1
• WD-6

• Country of Origin: Mexico

AC Horsepower Ratings

• HP Rating: 1HP-120V
• Max. Amperage: 16 Amp

Electrical Specifications

• Amperage: 20 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• Grounding: Self-Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Voltage: 277 VAC

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C

Material Specifications

• Actuator Material: Thermoplastic
• Body Material: Thermoplastic Polyester
• Strap Material: Steel

Product Features

• Color: White
• Brand: Decora Plus
• Device Type: Rocker Switch
• Feature: Illuminated - Load ON (Pilot Light)
• Function: 3-Way
• Grade: Commercial Specification Grade

Mechanical Specifications

• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back or Side Wire

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Standard: UL 20
• Warranty: 10-Year Limited
